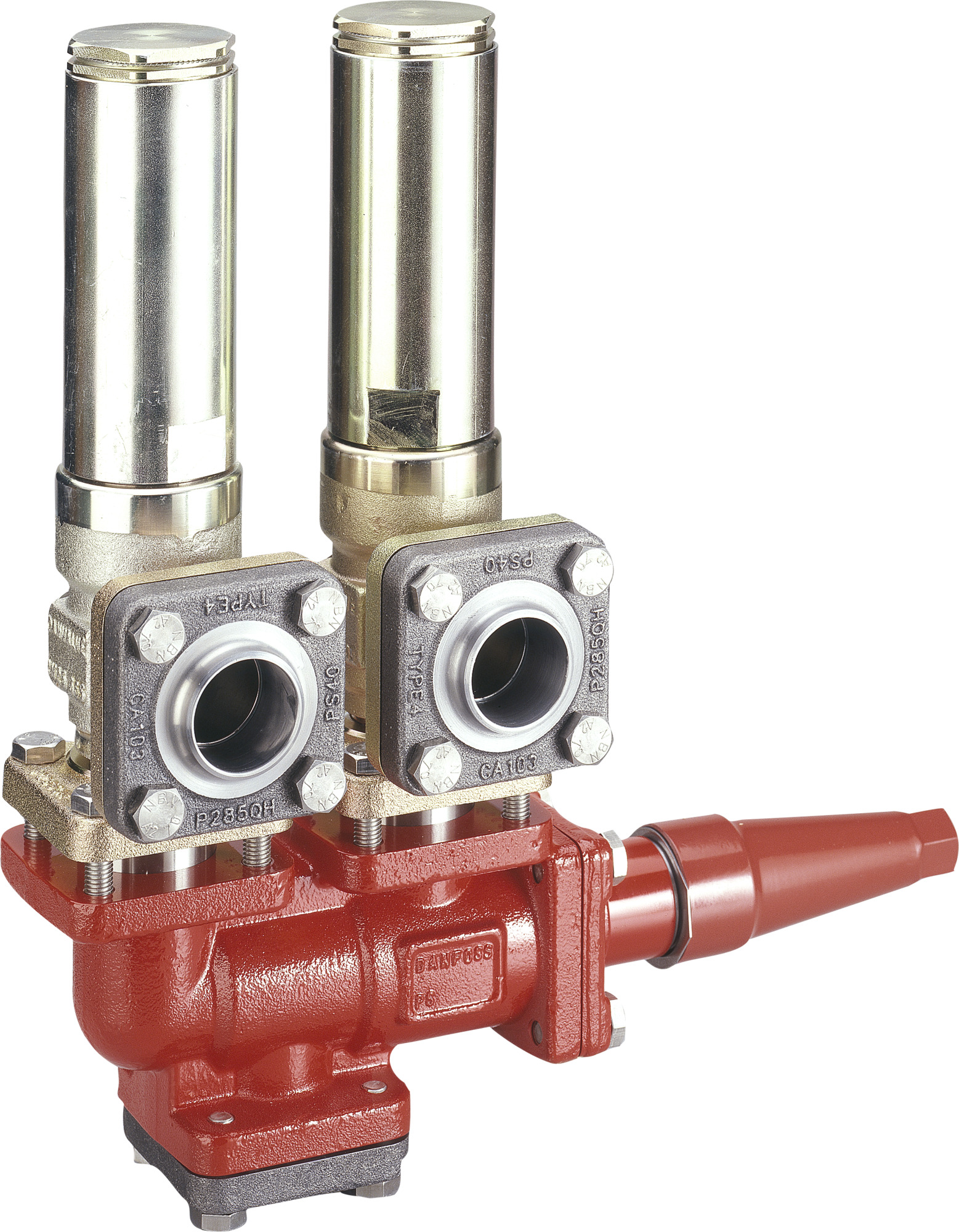

Change-over valve, DSV 2, Weld flange
Danfoss
Product code:
148F3010
| Product Group : | Safety Valves |
|---|
General Information
| Equipment : | Cap |
|---|---|
| Parts Included : | Incl.Kit |
| Product Group : | Safety Valves |
| Type : | DSV 2 |
Connections
| Inlet Connection Size : | 1 1/4 in, 32.0 mm |
|---|---|
| Inlet Type : | Weld flange |
| Outlet Connection Size : | 1 in |
| Outlet Type : | G |
Kv Values
| Kv Value : | 30.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Weight : | 5.90 kg |
|---|
Pressure
| Max Operating Pressure : | 40.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Temperature Range : | -50-100 °C |
|---|
Valves
| CV Value : | 34.800 gal/min |
|---|---|
| Direction : | Threeway |
| Fluid Group : | 1 |
DSV2 FD32/FD5, DUAL STOPVALVE+KIT
Accessory
Generic spare parts, Tube with grease 30g for packing gland
PLEASE LOGIN TO SEE PRICES
Manufacturer:
Product code: 148H3445
Spare Part
| File name | Document Type | Extension | Size |
|---|---|---|---|
| change-over-valve-type-dsv-10-dsv-1-and-dsv-2-ast-ai183186425447en-001001.pdf | Technical Literature | 3.28 MB | |
| changeover-valves-dsv-1-dsv-2-ast-an14978641682001-000501.pdf | Installation Manual | 676.92 KB | |
| manufacturer-s-declaration-danfoss-md-033f1196-01-ast-id410840939200-0201.pdf | Conformity Declaration | 301.63 KB | |
| pressure-safety-certificate-tuv-0045-202-9120-z-00379-22-d-000-01--ast-id366030135940-0601.pdf | Conformity Declaration | 1.18 MB | |
| manufacturer-s-declaration-danfoss-md-033f0686-ao-ast-id365946903774-0801.pdf | Conformity Declaration | 488.98 KB | |
| eu-declaration-danfoss-eu-033f0685-ap-ast-id365934730359-0601.pdf | Conformity Declaration | 3.53 MB |
