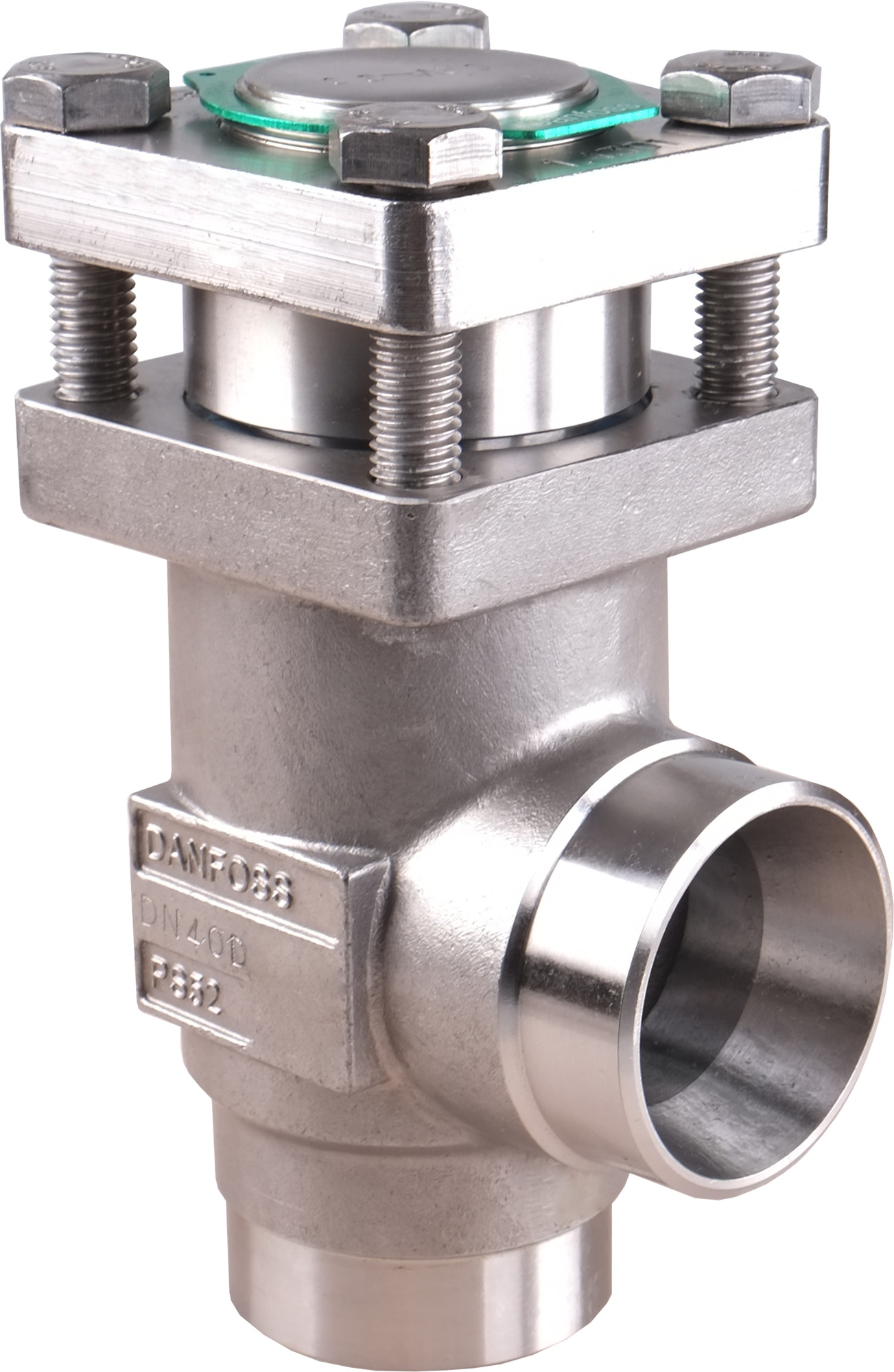

Check valve, CHV-X SS 15
Danfoss
Product code:
148B5294
| Product Group : | Check Valves |
|---|
General Information
| Product Group : | Check Valves |
|---|---|
| Type : | CHV-X SS 15 |
Additional Info
| Family : | CHV SS |
|---|
Connections
| Connection Size : | 1/2 in, 15 mm |
|---|---|
| Connection Type : | Butt weld |
Kv Values
| Kv Value : | 8.0 m³/h |
|---|
Logistical Information
| Commodity Code : | 84813091 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702428841528 |
| Gross Weight : | 1.516 kg |
Material
| Connection Material : | Stainless Steel |
|---|
Measurements
| Weight : | 1.31 kg |
|---|
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R600, R600a, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | CE, UKCA |
|---|
Temperature
| Temperature Range : | -60-150 °C |
|---|
Valves
| CV Value : | 9.300 gal/min |
|---|---|
| Direction : | Angleway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Fluid Group : | 1, 2 |
CHV-X SS 15 D ANG CHECK VALVE PS52
