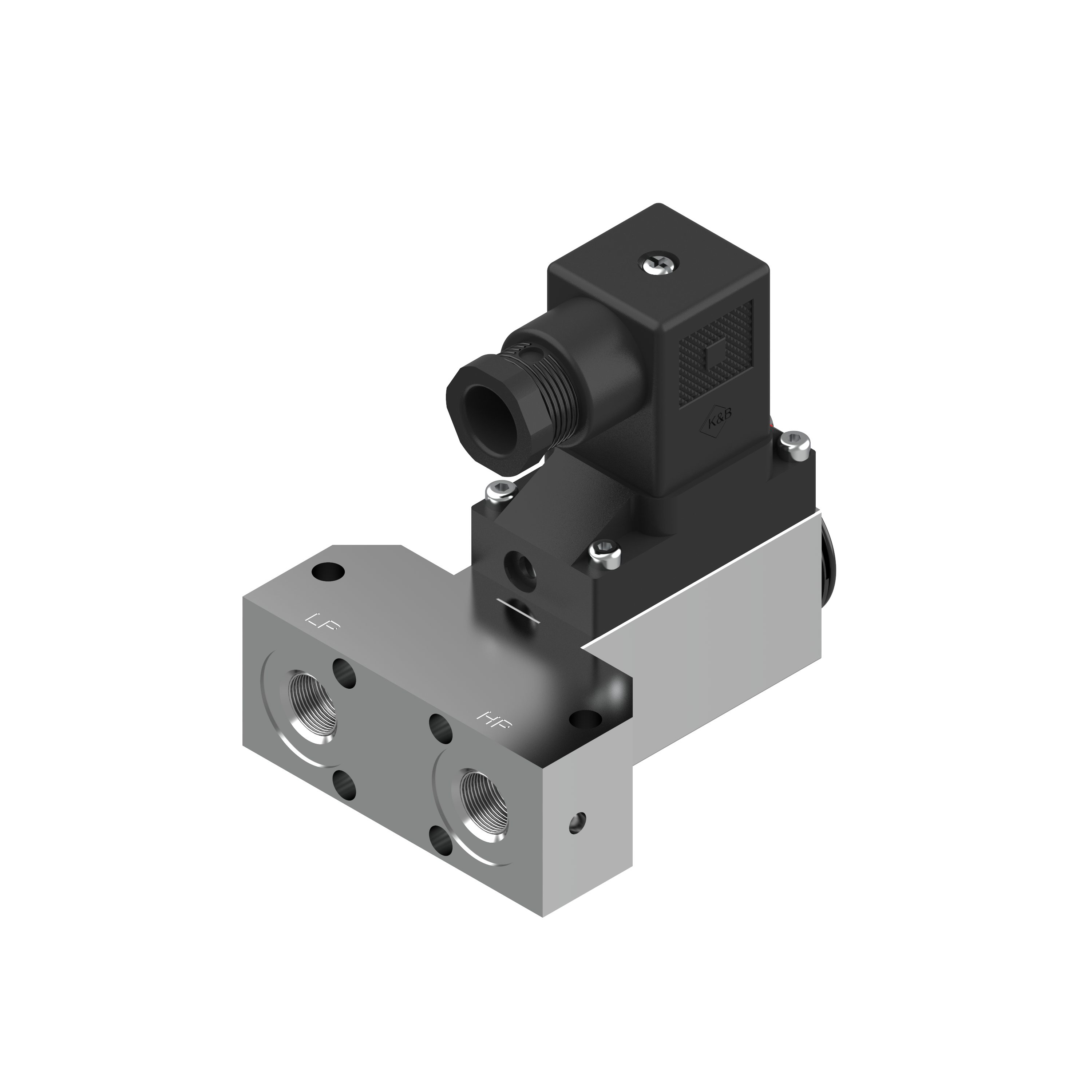

Differential pressure switch, MBC 5180
Danfoss
Product code:
061B129066
| Product Group : | Pressure Control Electronic |
|---|
General Information
| Product Group : | Pressure Control Electronic |
|---|---|
| Relay Release Time : | 0 s |
| Reset : | Auto |
| Specification Key : | 2031-1CB04 |
| Type : | MBC 5180 |
Connections
| Pressure Connection Size : | 1/4 |
|---|---|
| Pressure Connection Standard : | ISO 228-1 |
| Pressure Connection Type : | G |
| Pressure Male/Female : | Female |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | AC15=0.5 A, 250 V, DC13=12 W, 125 V |
| Electric Connection : | DIN-plug |
| Electric Connection Male/Female : | Female |
| Electric Connection Size : | Pg 11 |
| Electric Connection Standard : | EN 175301-803-A |
| IP Class : | IP65 |
Features
| Serviceable : | No |
|---|
Logistical Information
| Commodity Code : | 90322000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423218721 |
| Gross Weight : | 0.369 kg |
| Packaging Height : | 76 mm |
| Packaging Length : | 137 mm |
| Packaging Width : | 95 mm |
Pressure
| Burst Pressure : | 90.0 Bar |
|---|---|
| Max Operating Pressure : | 45.0 Bar |
Standards
| Approval : | ABS, CCC, CCS, CE, EAC, GL, KRS, LLC CDC EURO-TYSK, LR, LVD, NKK, RINA, RoHS, RoHS China, TYSK, UKCA |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| differential-pressure-switch--ast-an10388642449701-000202.pdf | Installation Manual | 812.18 KB |
