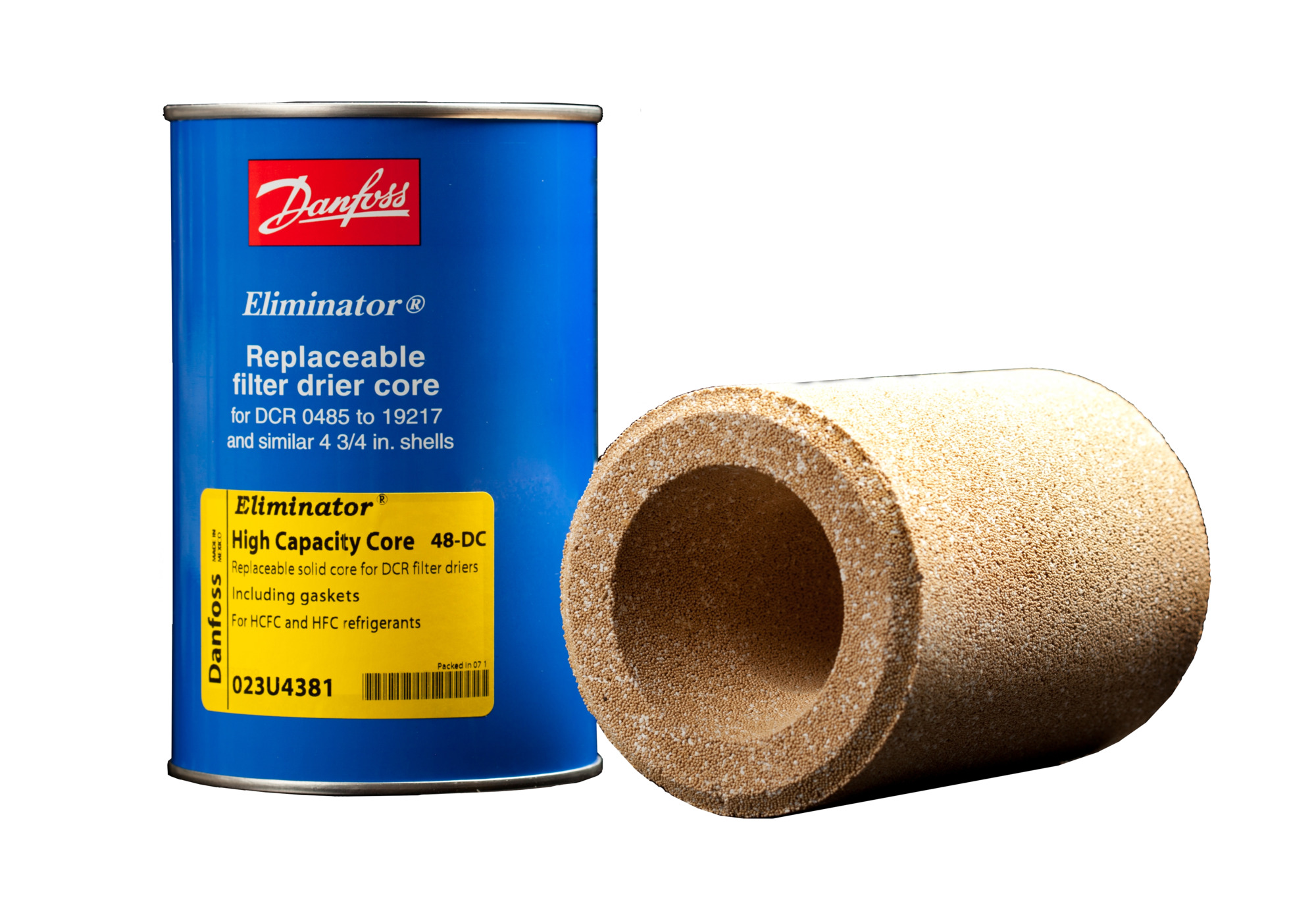

Filter drier, core, 48-DC
Product code:
023U4381
| Product Group : | Replacement Drier Cores |
|---|
General Information
| Activated Alumina / Molec. Sieve. : | 20/80 % |
|---|---|
| Model Number : | 023U4381 |
| Parts Included : | 1 x Gasket (023U0743), 2 x Felt gasket (633L5312) |
| Product Group : | Replacement Drier Cores |
| Specification Key : | 48-DC |
| Type : | 48-DC |
Additional Info
| Additional Info : | Standard capacity |
|---|---|
| Family : | DCR-DC |
Capacity
| Acid Capacity : | 9.09 g |
|---|
Driers
| Core Size : | 48 cu.in. |
|---|---|
| Solid Core Surface : | 95.00 in², 612 cm² |
| Solid Core Volume : | 44.00 in³, 727 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R134a: 1296, R404A: 1350, R407C: 1259, R410A: 1174, R452A: 1339, R507: 1414, R1234ze: 1386 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R134a: 1187, R404A: 1279, R407C: 1160, R410A: 1044, R452A: 1248, R507: 1272, R1234ze: 1246 |
Logistical Information
| Commodity Code : | 68159900 |
|---|---|
| Country Of Origin : | MEX |
Measurements
| Net Weight : | 0.71 kg |
|---|---|
| Weight : | 0.71 kg |
Refrigerant
| Refrigerant : | R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A |
|---|
Filter drier core 48DC I/8
| File name | Document Type | Extension | Size |
|---|---|---|---|
| filter-drier-shell-types-dcr-and-dcre-ast-ai222586433727en-001302.pdf | Technical Literature | 2.96 MB |
