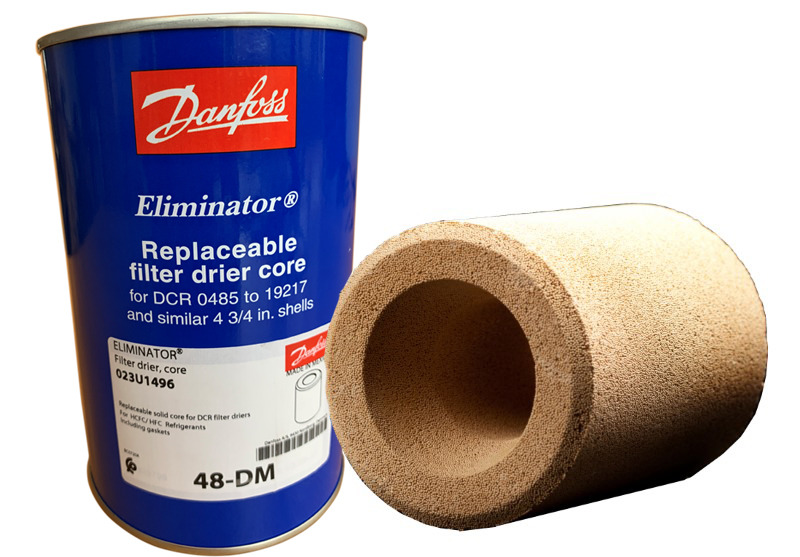

Filter drier, core, 48-DM
Danfoss
Product code:
023U1392
| Product Group : | Replacement Drier Cores |
|---|
General Information
| Activated Alumina / Molec. Sieve. : | 0/100 % |
|---|---|
| Parts Included : | 1 x Gasket (023U0743), 2 x Felt gasket (633L5312) |
| Product Group : | Replacement Drier Cores |
| Specification Key : | 48-DM |
| Type : | 48-DM |
Additional Info
| Additional Info : | High capacity |
|---|---|
| Family : | DCR-DM |
Capacity
| Acid Capacity : | 3.56 g |
|---|
Driers
| Core Size : | 48 cu.in. |
|---|---|
| Solid Core Surface : | 95.00 in², 612 cm² |
| Solid Core Volume : | 44.00 in³, 727 cm³ |
Drying Capacity
| Drying Capacity 24°C (Drops of Water) : | R134a: 1652, R404A: 1721, R407C: 1605, R410A: 1496, R452A: 1707, R507: 1803, R1234ze: 1766 |
|---|---|
| Drying Capacity 52°C (Drops of Water) : | R134a: 1513, R404A: 1630, R407C: 1479, R410A: 1331, R452A: 1590, R507: 1622, R1234ze: 1588 |
Logistical Information
| Commodity Code : | 68159900 |
|---|---|
| Country Of Origin : | MEX |
Measurements
| Net Weight : | 0.57 kg |
|---|---|
| Weight : | 0.57 kg |
Refrigerant
| Refrigerant : | R22/R407C, R134a, R290, R401A, R402A, R404A, R409A, R410A, R421A, R422D, R502, R507A, R744 |
|---|
Filter drier core 48DM I/8
| File name | Document Type | Extension | Size |
|---|---|---|---|
| filter-drier-shell-types-dcr-and-dcre-ast-ai222586433727en-001302.pdf | Technical Literature | 2.96 MB |
