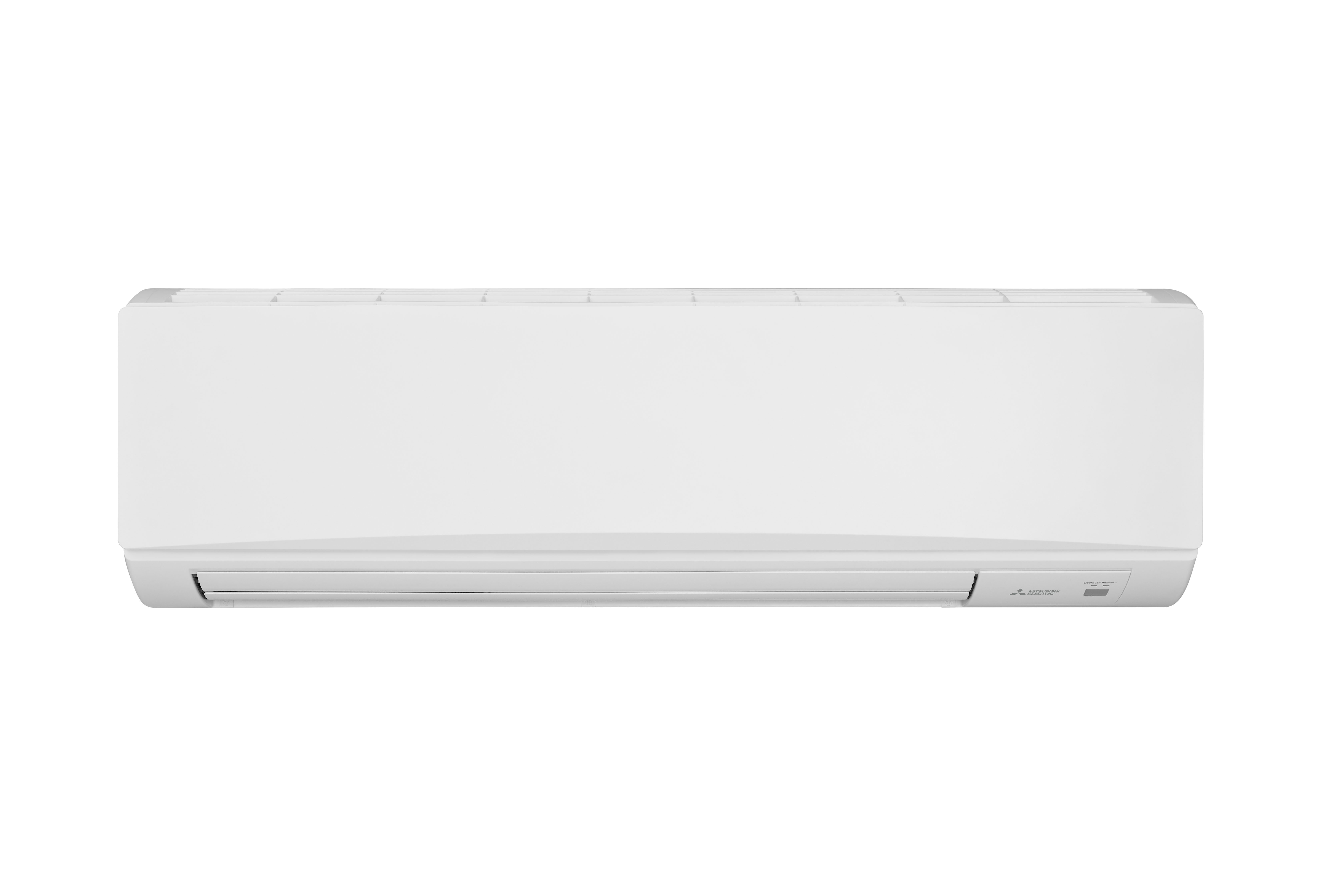

Indoor Unit - High Wall Inverter R32 - NO WIFI
Product code:
MSZ-AS90VGD
| Product Group : | High Walls |
|---|
General Information
| Product Group : | High Walls |
|---|---|
| Condensate Water Pump Provided : | No |
| Model Number : | MSZ-AS90VGD |
| Pre-Equipped Wifi : | No |
| Remote Control : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split or Multi Split |
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 463 L/s |
|---|---|
| Air Volume : | 1667.0 m³/h |
Capacity
| Cooling Capacity : | 9.0 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 1.35-9.0-10.3 kW |
| Heating Capacity : | 10.3 kW |
| Heating Capacity (Min/Rated/Max) : | 1.6-10.3-11.5 kW |
Electrical
| Max Current : | 17.6 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 230/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.5 |
|---|---|
| EER : | 3.24 |
Measurements
| Depth : | 295 mm |
|---|---|
| Height : | 365 mm |
| Net Weight : | 20 kg |
| Width : | 1170 mm |
Pipes
| Pipe Dimension : | 6.35 m, 12.7 mm |
|---|
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Pipe Size : | 6.35, 12.7 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 36/42/48 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| msz-as-EN.pdf | Brochures | 835.06 KB |
