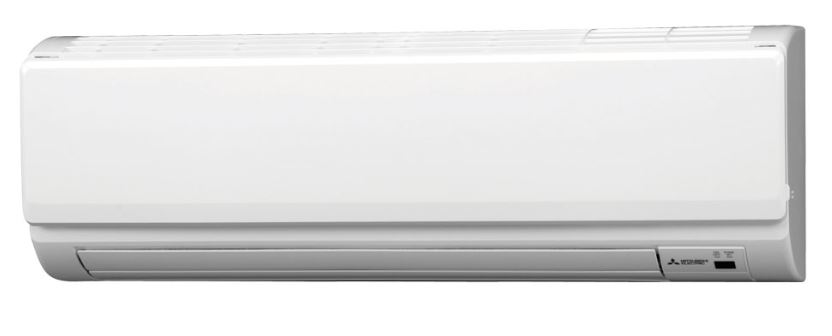

Indoor Unit - Inverter Wall Mount for PUZ/R32
Mitsubishi Electric
Product code:
PKA-M100KAL-I
| Product Group : | High Walls |
|---|
General Information
| Condensate Water Pump Provided : | No |
|---|---|
| Model Number : | PKA-M100KAL-I |
| Product Group : | High Walls |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split / Multi Split |
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 433 L/s |
|---|---|
| Air Volume : | 1321 m³/h |
Connectivity
| Pre-Equipped Wifi : | Optional |
|---|
Cooling Capacity
| Cooling Capacity : | 7.1 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 3.3-7.1-8.1 kW |
Electrical
| Max Current : | 19.43 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.77 |
|---|---|
| EER : | 3.81 |
Heating Capacity
| Heating Capacity : | 7.0 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 3.5-8.0-10.2 kW |
Measurements
| Depth : | 295 mm |
|---|---|
| Height : | 365 mm |
| Net Weight : | 21.0 kg |
| Width : | 1170 mm |
Pipes
| Pipe Dimension : | 9.52 m, 15.88 mm |
|---|
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Pipe Size : | 9.52, 15.88 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 39/42/45 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| mitsubishi-electric-pka-m-ast-2400643.pdf | Brochures | 2.25 MB |
