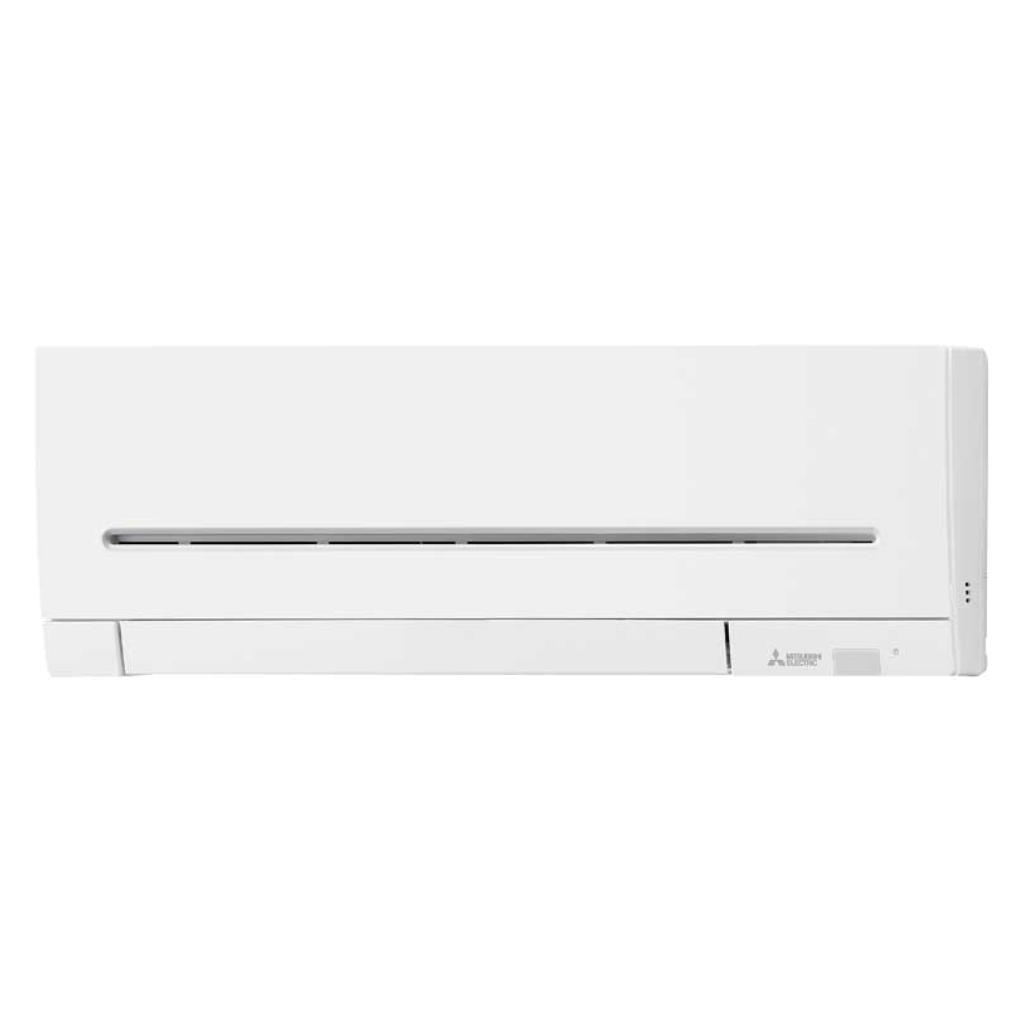

Mitsubishi Electric Indoor Unit - High Wall Inverter R32 - Wi-Fi Control
Product code:
MSZ-AP25VGKD-I
| Product Group : | High Walls |
|---|
General Information
| Condensate Water Pump Provided : | No |
|---|---|
| Model Number : | MSZ-AP25VGKD-I |
| Product Group : | High Walls |
| Remote Control : | Yes |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split or Multi Split |
Air Volume/Air Flow
| Air Flow (Low/Medium/High) : | 205 L/s |
|---|---|
| Air Volume : | 684 m³/h |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 2.5 kW |
|---|---|
| Cooling Capacity (Min/Rated/Max) : | 1.1-2.5-3.6 kW |
Electrical
| Max Current : | 3.3 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Voltage : | 230/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.78 |
|---|---|
| EER : | 5 |
Heating Capacity
| Heating Capacity : | 3.2 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 1.3.-3.2-5.0 kW |
Measurements
| Depth : | 219 mm |
|---|---|
| Height : | 299 mm |
| Net Weight : | 10.5 kg |
| Width : | 798 mm |
Pipes
| Pipe Dimension : | 6.35 m, 9.52 mm |
|---|
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Pipe Size : | 6.35, 9.52 mm |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 25/31/38 dB(A) |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| msz-ap-en-ast-1914440.pdf | Brochures | 713.41 KB |
