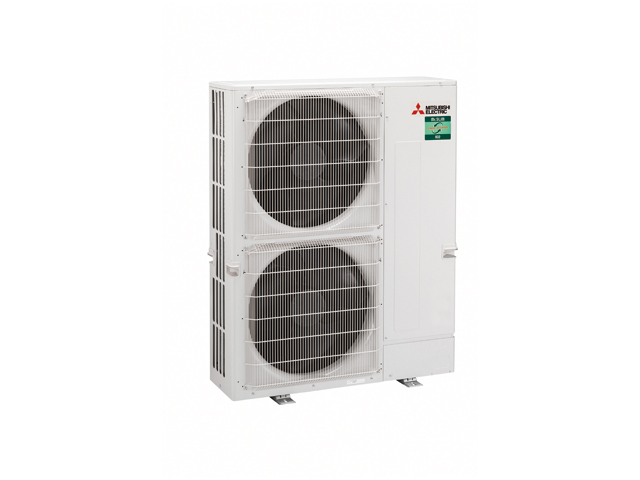

Outdoor unit - Inverter 12.5kW R32 - PLA/PEA/PEAD Deluxe Unit
Product code:
PUZ-ZM125VKA
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
General Information
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
Additional Info
| Family : | PUZ-ZM Delux |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow : | 1996 L/s |
|---|
Connections
| Connection Size : | 9.52 mm |
|---|---|
| Connection Size 2 : | 15.88 mm |
Cooling Capacity
| Cooling Capacity : | 12.5 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 6.0/13.5 kW |
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Recommended Fuse : | 32 A |
Heating Capacity
| Heating Capacity : | 14.0 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 4.1/14.0/15.5 kW |
Measurements
| Depth : | 330 mm |
|---|---|
| Height : | 1338 mm |
| Weight : | 113 kg |
| Width : | 1050 mm |
Pipes
| Chargeless Piping Length : | 30 m |
|---|---|
| Max Piping Length : | 75 m |
Refrigerant
| Additional Charge : | 40 g/m g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 3.6 kg |
| Refrigerant precharged up to : | 30 m |
Sound Power/Pressure
| Sound Power Level : | 70 dB(A) |
|---|
