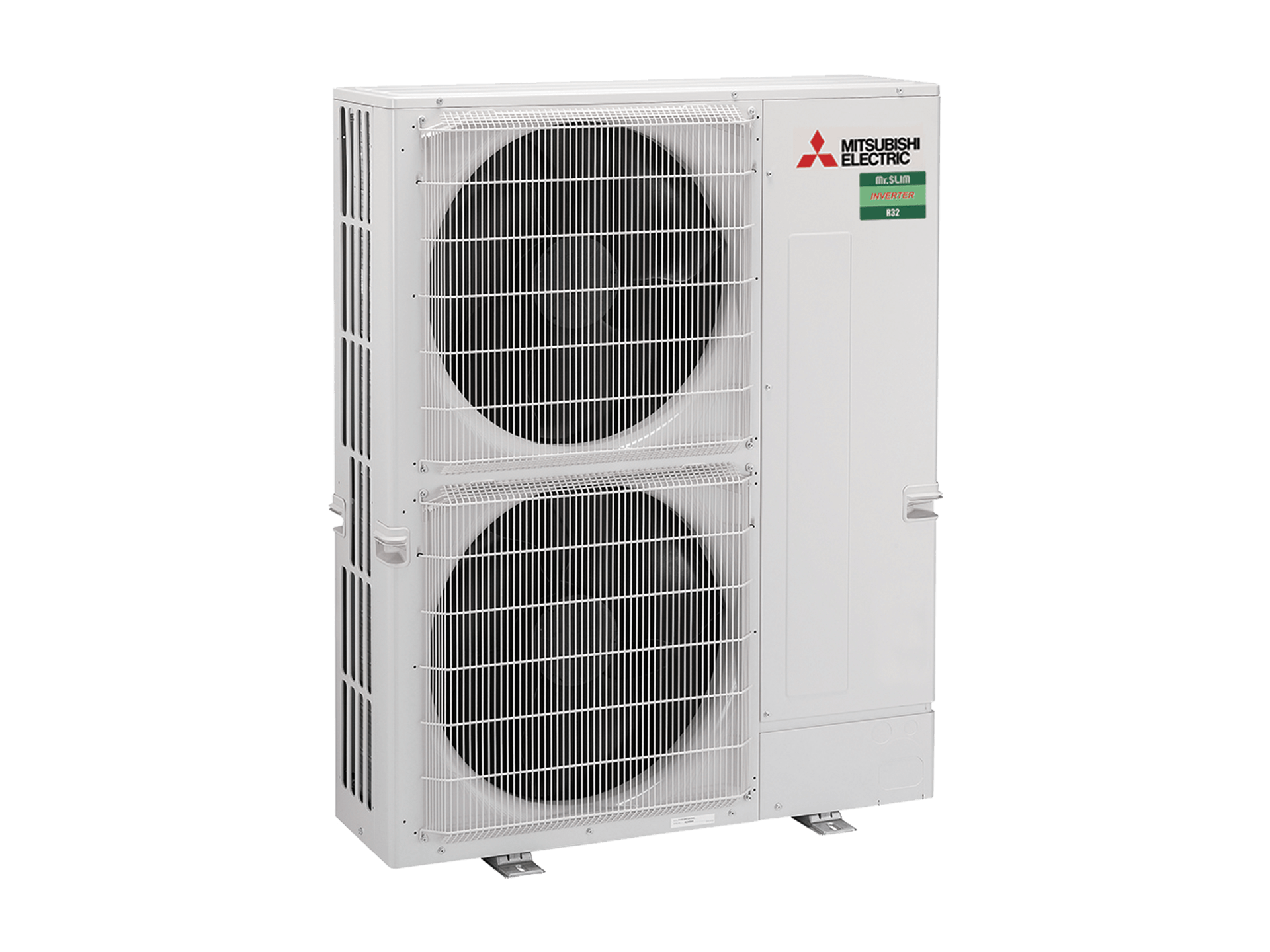

Outdoor Unit - Single Phase Ducted
Product code:
PUZ-RP170VKA-A
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
General Information
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
Additional Info
| Family : | PUZ-RP170 |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow : | 2330 L/s |
|---|
Connections
| Connection Size : | 9.52 mm |
|---|---|
| Connection Size 2 : | 25.4 mm |
Cooling Capacity
| Cooling Capacity : | 16.0 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 9.0/20.0 kW |
Electrical
| Current (Cooling) : | 34.0 A |
|---|---|
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Heating Capacity
| Heating Capacity : | 20.0 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 9.5/20.0/22.4 kW |
Measurements
| Depth : | 330 mm |
|---|---|
| Height : | 1338 mm |
| Weight : | 127 kg |
| Width : | 1050 mm |
Outdoor Unit Attributes
| Sound Power Level Cooling (OU) : | 58 dB(A) |
|---|
Pipes
| Chargeless Piping Length : | 30 m |
|---|---|
| Max Height Difference : | 30 m |
| Max Piping Length : | 75 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/+46 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -20/+21 °C |
