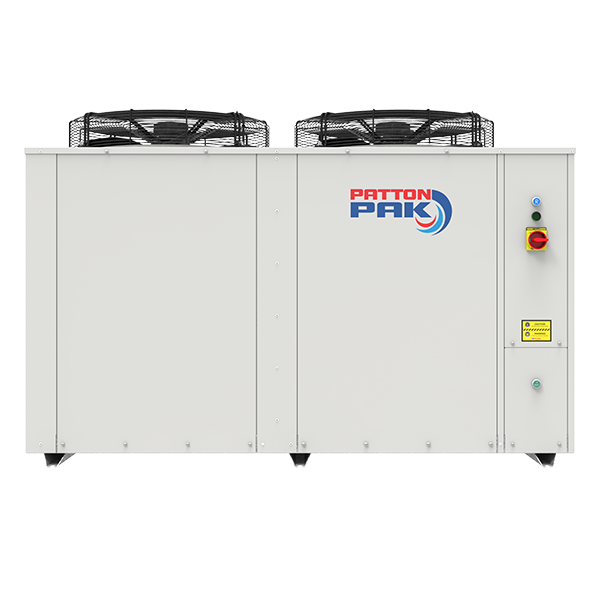

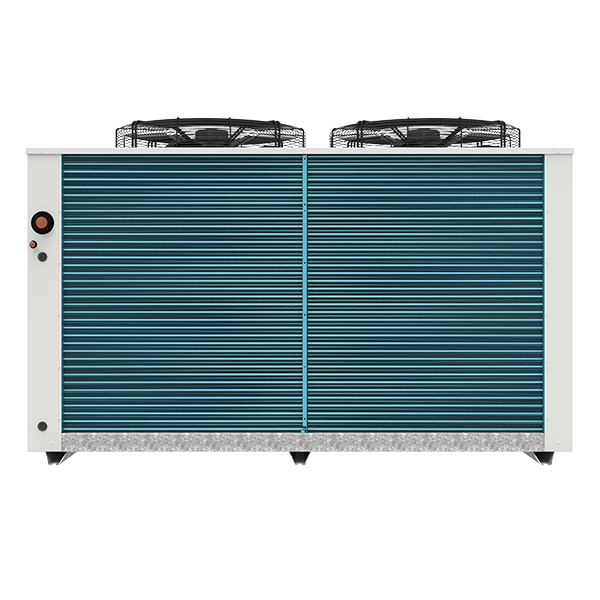

PattonPak - Condensing Unit 2.8Hp 3Ph
Patton
Product code:
PCC275
| Product Group : | Condensing Units Packaged |
|---|
General Information
| Product Group : | Condensing Units Packaged |
|---|---|
| Receiver Volume : | 3.7 kg |
Compressor
| Compressor Model : | cs18K6e-tfd |
|---|---|
| Displacement : | 61.4 cc |
| Power Supply Compressor : | 380-420/3/50 V/Ph/Hz |
Connections
| Liquid Line Connection : | 9.525 mm |
|---|---|
| Suction Connection Size : | 19.05 mm |
Fan
| Fan Diameter : | 350 mm |
|---|---|
| Number Of Fans : | 1 |
Measurements
| Height : | 814 mm |
|---|---|
| Net Weight : | 84 kg |
R134A Performances
| R134a Nominal Capacity -5°C : | 3850 W |
|---|
R404A Performances
| R404A Nominal Capacity -25°C : | 2900 W |
|---|
| File name | Document Type | Extension | Size |
|---|---|---|---|
| pcc-pmtz-pem-en-ast-1346081.pdf | Brochures | 4.07 MB |
