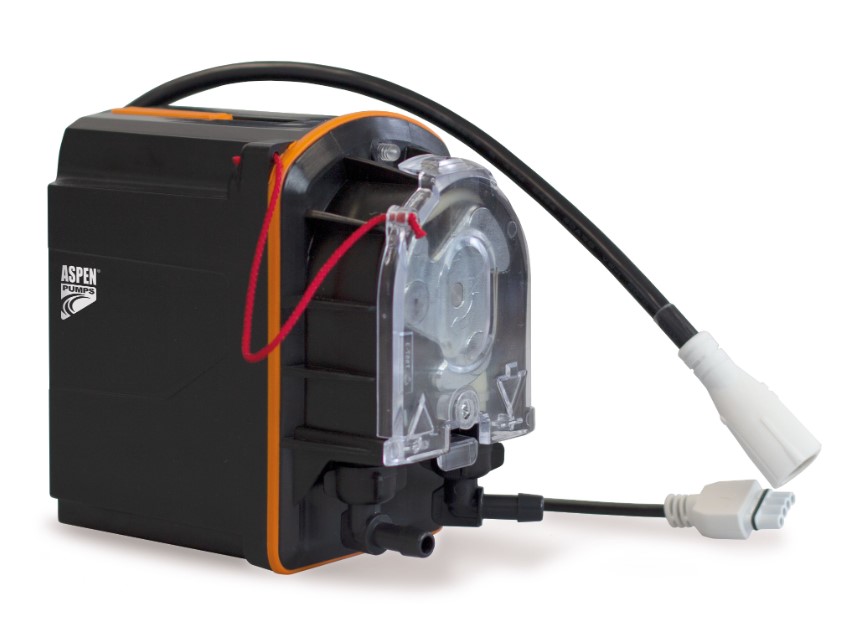

Peri Pro Air – 15LPH Temperature Sensor Activated
Product code:
FP3390
| Product Group : | Condensate Pumps |
|---|
General Information
| Class : | II |
|---|---|
| Product Group : | Condensate Pumps |
Capacity
| Capacity : | 15 kW |
|---|
Condensate Pumps
| Flow Rate at 12 m : | 15 L/h |
|---|---|
| Max Discharge Head : | 12 m |
| Max Flow Rate : | 15 L/h |
| Max Suction Head : | 3 m |
| Max Water Temperature : | 40 °C |
Electrical
| Amp : | 3 A |
|---|---|
| IP Class : | IP24 |
| Power Supply : | 110-230 Vac |
Logistical Information
| Commodity Code : | 84138100 |
|---|---|
| Country Of Origin : | CHN |
Measurements
| Maximum Head : | 12 m |
|---|
Refrigerant
| Rated : | Continuously |
|---|
Switch
| Safety Switch : | 5A NC relay |
|---|
The new Peri Pro Air offers outstanding reliability with an industry first 5 year warranty*. Built upon stepper motor technology and software control, this version offers user programmable speed control to minimise audible noise and tube wear.* Warranty length depends on Country , please enquire
| File name | Document Type | Extension | Size |
|---|---|---|---|
| aspen-fp3390-man-en-de-fr-cl-pl-ast-4043837.pdf | Installation Manual | 1.92 MB | |
| aspen-fp3390-peri-pro-pump-ast-4043836.pdf | Brochures | 575.58 KB |
