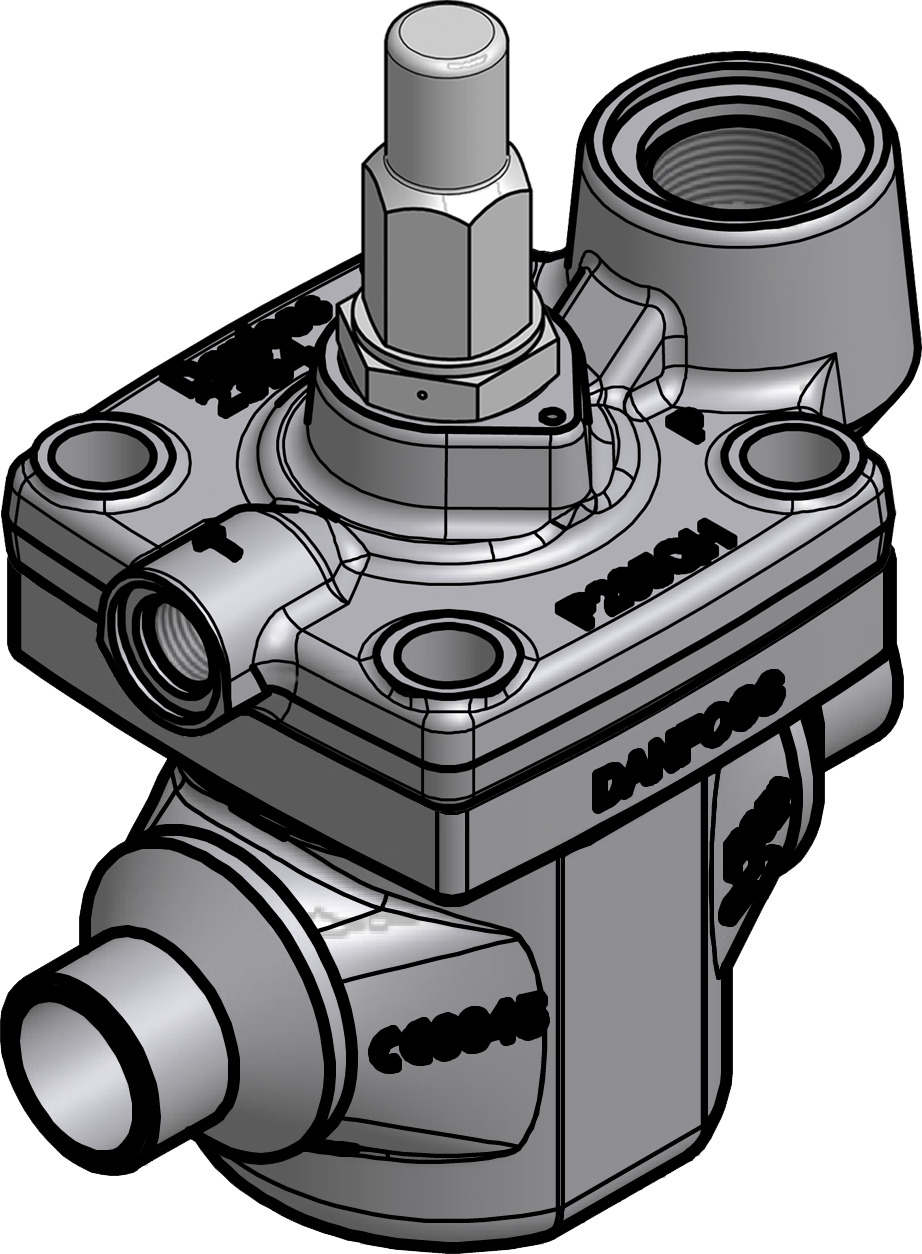

Pilot operated servo valve, ICS1 25-10, 20.0 mm, Socket weld

Danfoss

Product code: 027H2141
PLEASE LOGIN TO SEE PRICES
Product Group : Control Valves
General Information
Product Group : Control Valves
Approval : EAC, LLC CDC EURO-TYSK, UL
CV Value : 4.1 gal/min
Surface Coating : Zn (TLP)
Top Cover : 1 function module
Type : ICS1 25-10
Compressor
PED Category : Art. 3, par. 3
Connections
Connection Standard : ASME B 16.11
External Pilot Pressure Connection : Weld nipple (P2 Port)
Inlet Type : Socket weld
Outlet Type : Socket weld
Pressure Gauge Connection : Int. thread with blind plug
Kv Values
Kv Value : 3.5 m³/h
Material
Body Material : Steel
Connection Material : Steel
Pressure
Max Operating Pressure : 65.0 Bar
Refrigerant
Refrigerant : R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717, R744, R1234ze(E)
Valves
Direction : Straightway
Flow Direction Indicator : Embossed 1-way arrow
Fluid Group : 1
Opening Configuration : Closed (delta p=0 bar); Full open (delta p≥0.2 bar); PropOpen (delta p=0.07-0.2bar)
Valve Operation : Pilot operated
Valve Version : Standard version
