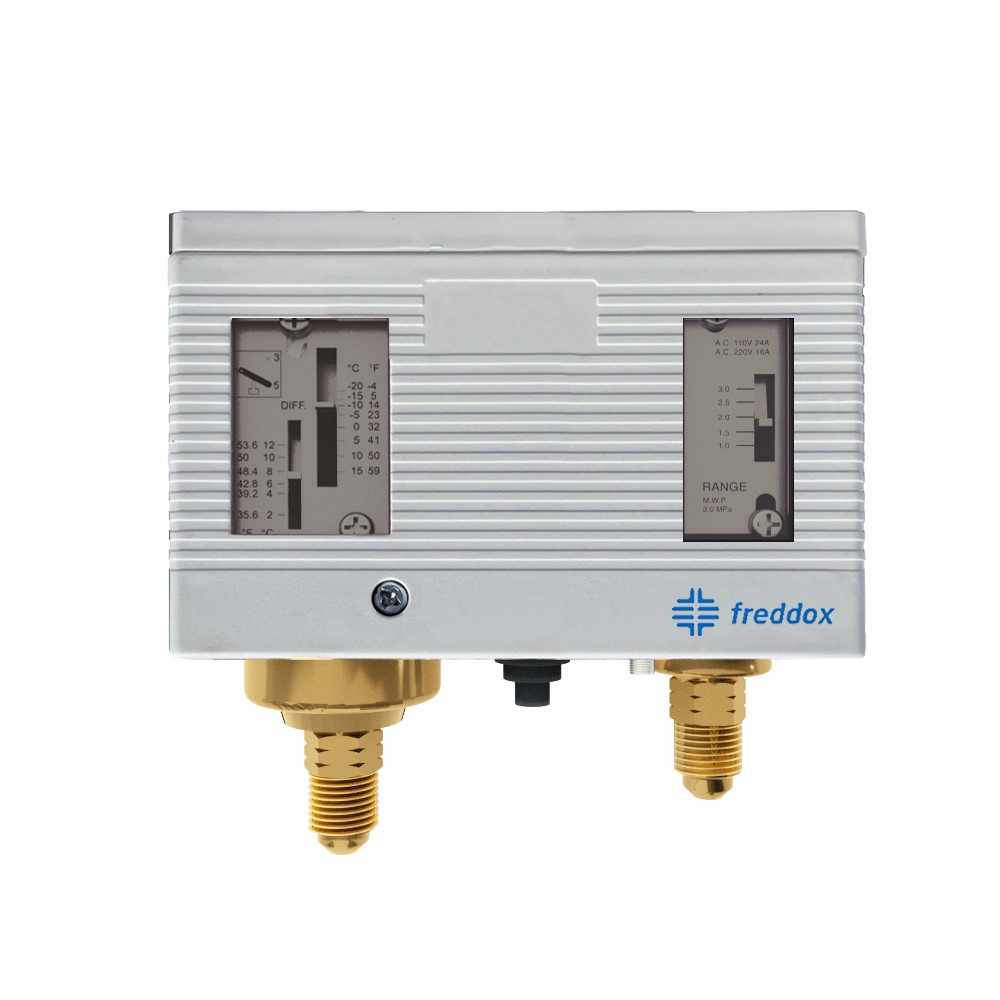

Pressure Control Switch HP/LP Manual/Auto Reset
FREDDOX
Product code:
EBFD1192A
| Product Group : | Pressure Controls Mechanical |
|---|
General Information
| Product Group : | Pressure Controls Mechanical |
|---|---|
| Reset : | Auto/Manual |
| Reset Left Side : | Auto |
| Reset Right Side : | Manual |
Additional Info
| Family : | Dual Pressure Contol |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Male 7/16-20 UNF |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | 16A |
| IP Class : | IP30 |
Measurements
| Depth : | 53 mm |
|---|---|
| Height : | 106 mm |
| Width : | 108 mm |
Pressure
| Diff Left Side : | 0.6-4 Bar |
|---|---|
| Diff Right Side : | 2 Bar |
| Regulating Left Side : | -0.3 - 7 Bar |
| Regulating Right Side : | 7 - 31 Bar |
Temperature
| Max Ambient Temperature : | 55 °C |
|---|---|
| Min Ambient Temperature : | -40 °C |

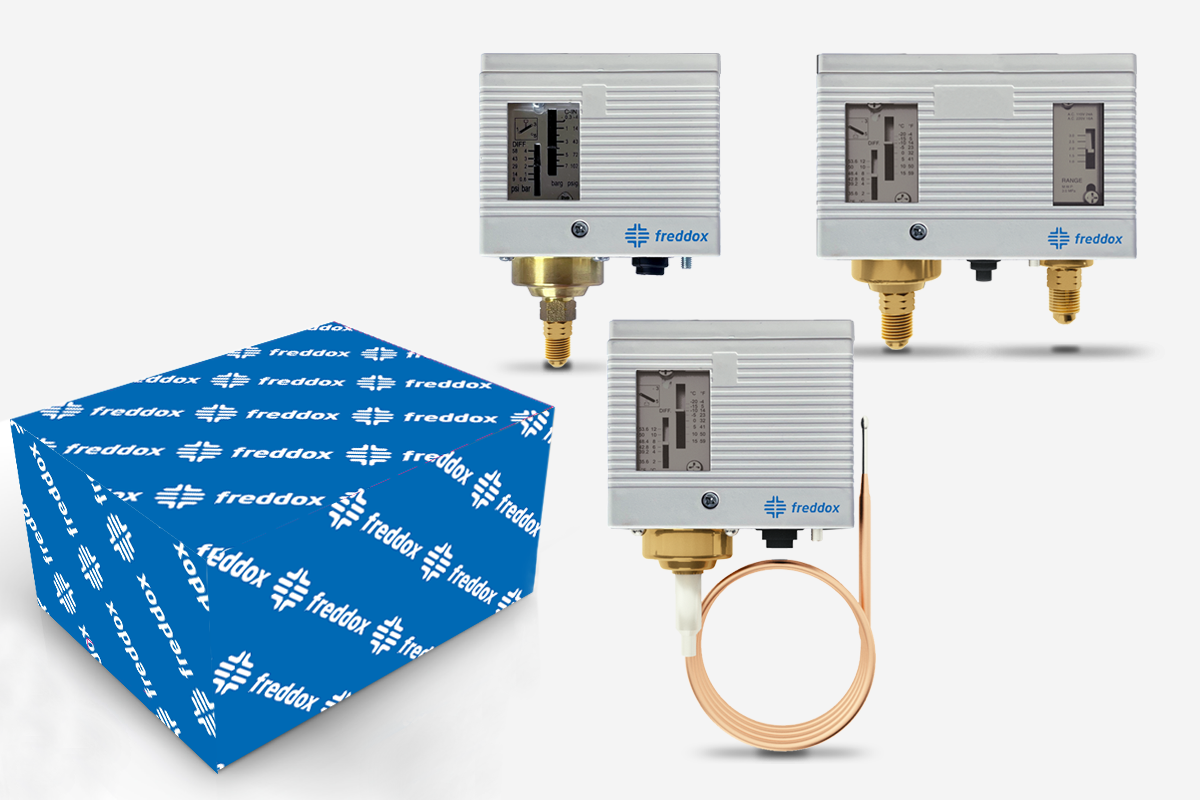

Freddox Pressure switch offer a reliable compact electro-mechanical solution to operate safety as control functions on Refrigeration installation up to 3HP. They can be use for any pressure management, as for Fan control, Solenoid valves management or Compressor management , The Freddox pressure switches are equipped with SPDT contacts for an easier wiring and with standard male fittings for a faster connection.
| File name | Document Type | Extension | Size |
|---|---|---|---|
| beijerrefab-pressureswitch-freddox-24-en-web-ast-3042175.pdf | Brochures | 720.64 KB |
