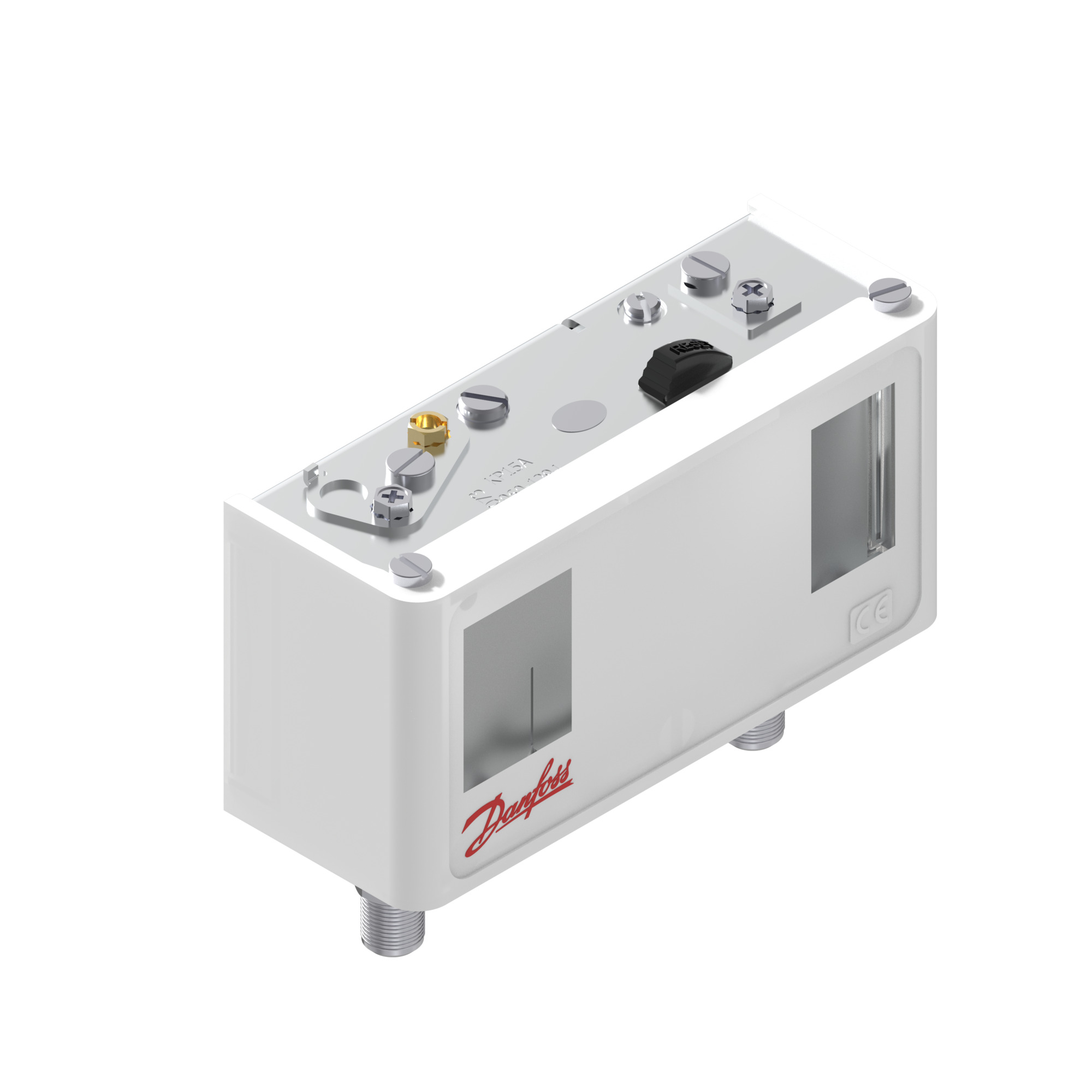

Pressure switch, KP15A
Danfoss
Product code:
060-129491
| Product Group : | Pressure Controls Mechanical |
|---|
General Information
| Product Group : | Pressure Controls Mechanical |
|---|---|
| Reset Left Side : | Auto |
| Reset Right Side : | Manual Max |
| Type : | KP15A |
Compatibility
| Lubricants Compatibility : | Oilfree applications |
|---|
Connections
| Pressure Connection Size : | 10 x 0.75 |
|---|---|
| Pressure Connection Standard : | ISO 261 |
| Pressure Connection Type : | M |
| Pressure Male/Female : | Male |
Electrical
| Contact Function : | SPDT+SPST(NO) |
|---|---|
| Contact Rating : | AC1=16 A, 400 V, AC3=16 A, 400 V, AC15=10 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V, Terminal D: 50 VA, 400 V |
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| IP Class : | IP30 |
Features
| Serviceable : | No |
|---|
Pressure
| Diff Right Side : | 4.0 Bar |
|---|---|
| Max Operating Pressure Left Side : | 17.0 Bar |
| Max Operating Pressure Right Side : | 35.0 Bar |
| Max Test Pressure Left Side : | 20 Bar |
| Max Test Pressure Right Side : | 35 Bar |
| Pressure Sensing Elements : | Bellows |
Refrigerant
| Oil Free Refrigerants : | R134a, R513A, R515B |
|---|---|
| Refrigerant : | R22, R113, R124, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B, R717, R1234yf, R1234yz, R1234ze(E) |
| UL Approved Refrigerants : | R22, R113, R124, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R507A, R513A, R515B, R717 |
Standards
| Approval : | BV, CCC, CE, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
|---|
