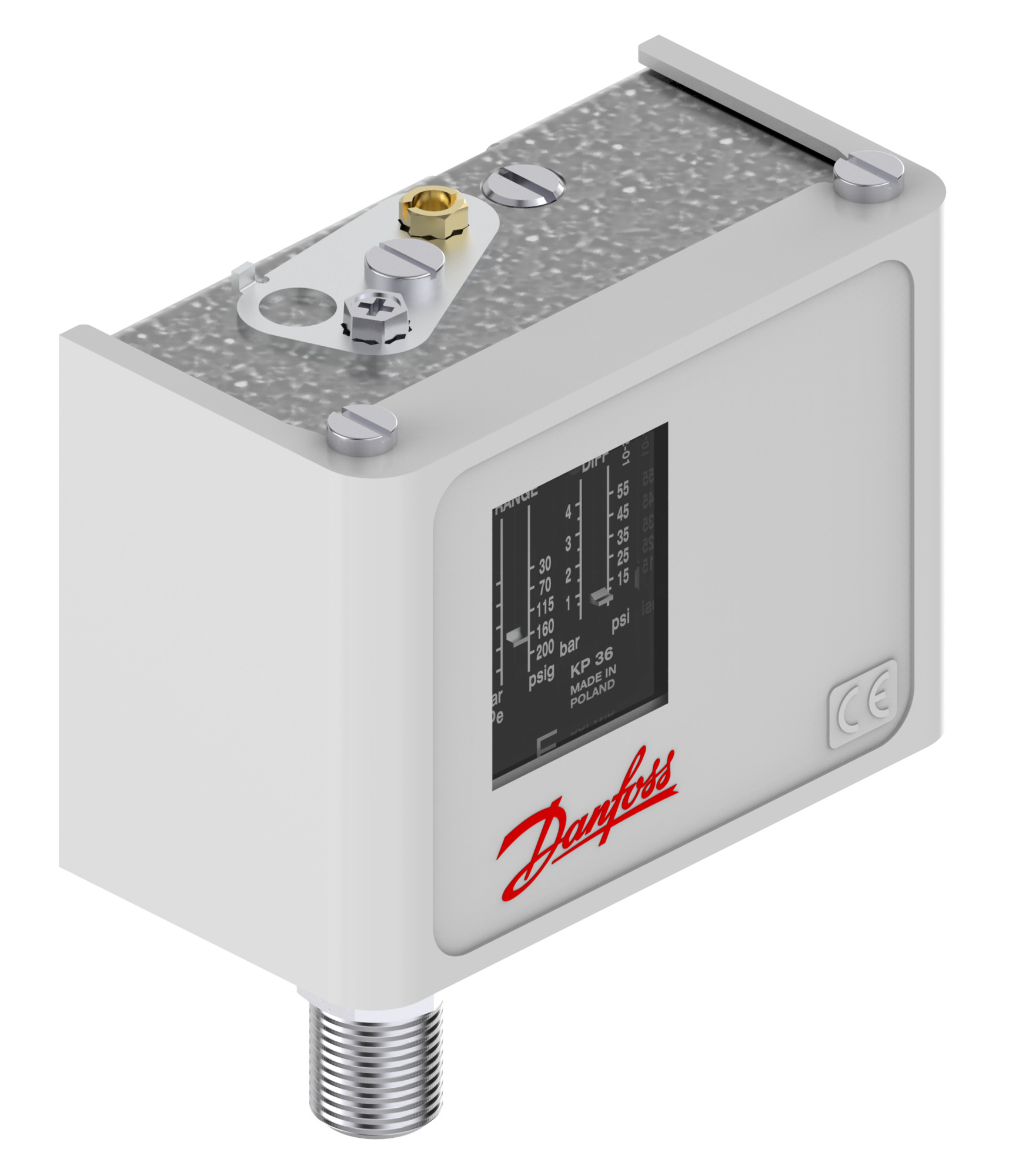

Pressure switch, KP36
Product code:
060-110891
| Product Group : | Pressure Controls Mechanical |
|---|
General Information
| Product Group : | Pressure Controls Mechanical |
|---|---|
| Reset : | Auto |
| Type : | KP36 |
Connections
| Pressure Connection Size : | 1/4 |
|---|---|
| Pressure Connection Standard : | ISO 228-1 |
| Pressure Connection Type : | G |
| Pressure Male/Female : | Male |
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating : | AC1=16 A, 400 V, AC3=16 A, 400 V, AC15=10 A, 400 V, DC13=12 W, 220 V, LR=112 A, 400 V |
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| IP Class : | IP30 |
Features
| Serviceable : | No |
|---|
Pressure
| Max Operating Pressure : | 17.0 Bar |
|---|---|
| Pressure Sensing Elements : | Bellows |
Standards
| Approval : | CCC, CE, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
|---|
