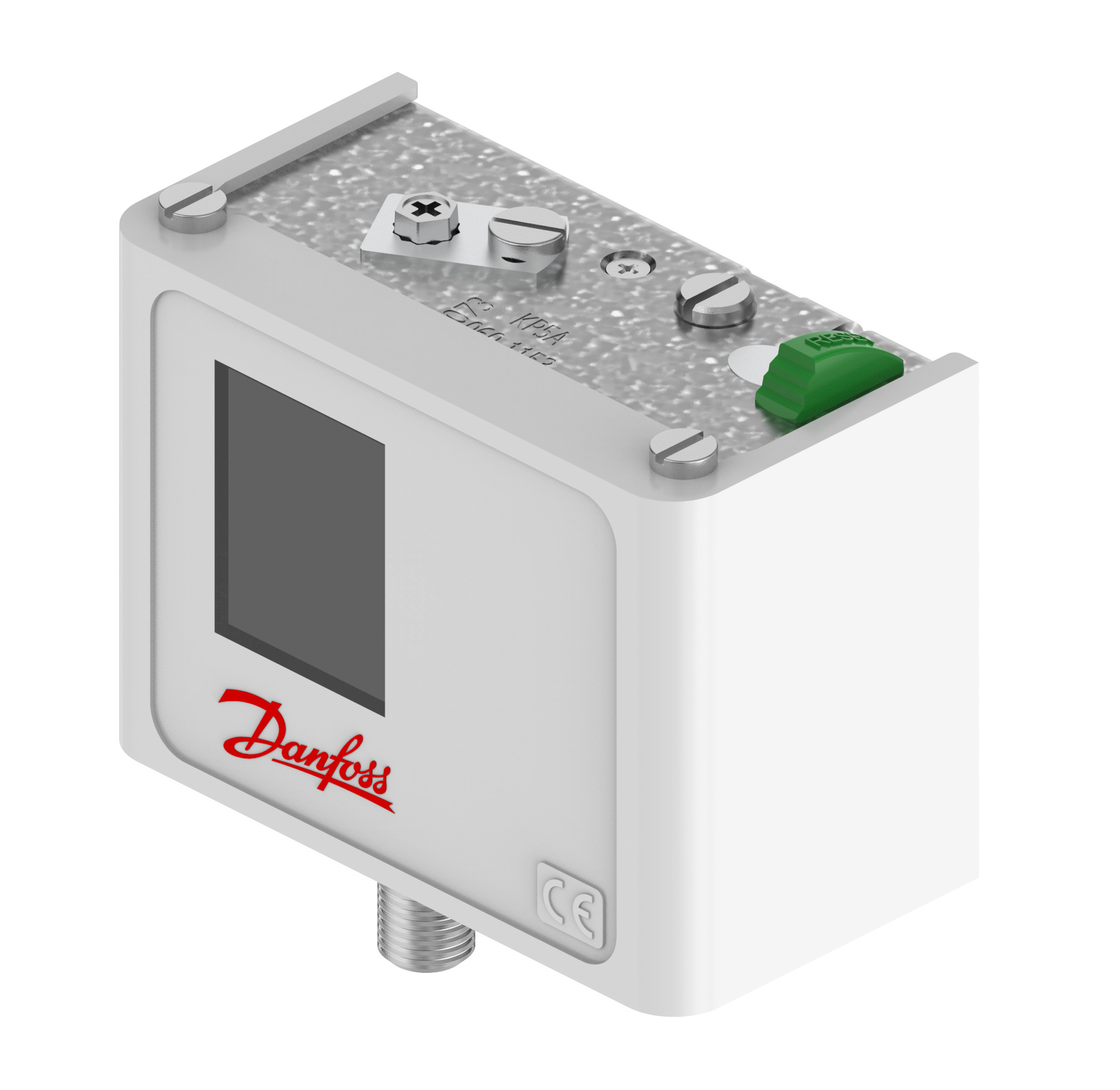

Pressure switch, KP5A
Danfoss
Product code:
060-123191
PLEASE LOGIN TO SEE PRICES
Further products
Pressure switch, RT5A
Switches accessories, Nut And Ring For Cutt. Ring Coupling
Pressure switch, RT116
Pressure switch, RT113
Differential pressure switch, RT260A
Pressure switch, KP7ABS
Switches accessories, Top Plate For KP Dual
Pressure switch, RT1
Pressure switch, RT121
Pressure switch, RT5A
Differential pressure switch, MP54
Pressure switch, RT1A
Pressure switch, RT1A
Pressure switch, KPS45
Pressure switch, RT1AL
Pressure switch, KP1A
Pressure switch, KPS43
Pressure switch, RT112
Pressure switch, KPI35
Pressure switch, KP15A
Pressure switch, RT200
Pressure switch, KPS35
RANCO O16-8706 LP CONTROL
RANCO O16-8750/D16P30A01MS200 HP CONTROL
RANCO O16-8751 HP CONTROL
RANCO O17-8705 DP CONTROL
RANCO DUAL PRESSURE SWITCH COVER
RANCO SINGLE PRESS.SW COVER
Pressure switch, RT117
Pressure switch, KP1
Pressure switch, KPS31
Pressure switch, CS
Pressure switch, KP36
Pressure switch, KP15
Pressure switch, KP1A
Pressure switch, KP5
Pressure switch, KP5
Pressure switch, KP5A
Pressure switch, KP5A
Pressure switch, KP15
Pressure switch, KP15A
Pressure switch, KP15A
Pressure switch, KPS33
Pressure switch, CAS145
DANFOSS MP 55A presostat różnicowy
Differential pressure switch, MP55A
Differentiaal pressostaat MP55A G 3/8" uit -1bar/12bar
Penn Low Pressure Control 0.5 to 7 Bar
Penn Fan Cycle / High Pressure Control 3.5 to 21Bar
Penn High Pressure Control 3 to 30Bar
Penn Dual Pressure Control 0.5-7/3-30Bar Auto Reset
Penn Dual Pressure Control 0.5-7/3-30Bar Auto Low HP Manual
Penn High Pressure Control HP 3 to 30Bar
Ranco Press control LP Man reset O16-8705
Pressure Control Ranco HP/LP Auto Reset (kPa) O17-8701
Defrost Control - Paragon Time Initiate- Time Terminated with Fan delay
Timer Defrost Paragon Time initiated/Pressure or time terminated
Product Group :
Pressure Controls Mechanical
Description
Downloads
Close menu
General Information
Product Group :
Pressure Controls Mechanical
Reset :
Manual Max
Type :
KP5A
Compatibility
Lubricants Compatibility :
Oilfree applications
Connections
Pressure Connection Size :
10 x 0.75
Pressure Connection Standard :
ISO 261
Pressure Connection Type :
M
Pressure Male/Female :
Male
Electrical
Contact Function :
SPDT
Contact Rating :
AC1=16 A, 400 V
, AC3=16 A, 400 V
, AC15=10 A, 400 V
, DC13=12 W, 220 V
, LR=112 A, 400 V
Electric Connection :
Rubber cable gland
Electric Connection Size :
6-14 mm
IP Class :
IP30
Features
Serviceable :
No
Pressure
Differential Pressure :
3.00 Bar
Max Operating Pressure :
35.0 Bar
Pressure Sensing Elements :
Bellows
Refrigerant
Oil Free Refrigerants :
R134a
, R513A
, R515B
Refrigerant :
R22
, R113
, R124
, R134a
, R404A
, R407A
, R407C
, R407F
, R407H
, R422B
, R422D
, R438A
, R448A
, R449A
, R449B
, R450A
, R452A
, R454C
, R455A
, R507A
, R513A
, R515B
, R717
, R1234yf
, R1234yz
, R1234ze(E)
UL Approved Refrigerants :
R22
, R113
, R124
, R134a
, R404A
, R407A
, R407C
, R407F
, R407H
, R422B
, R422D
, R438A
, R448A
, R449A
, R449B
, R450A
, R452A
, R507A
, R513A
, R515B
, R717
Standards
Approval :
BV
, CCC
, CE
, DNV
, EAC
, GL
, LLC CDC EURO-TYSK
, LR
, LVD
, PZH
, RINA
, RMRS
, RoHS China
, UKCA
, c UL us UL873, CS C22.2
Temperature
Ambient Temperature Note :
80 °C/176 °F for max 120 min
Close menu
File name
Document Type
Extension
Size
pressure-switch-kp-1-kp-1w--ast-an211886440281en-000703.pdf
Installation Manual
pdf
921.56 KB
