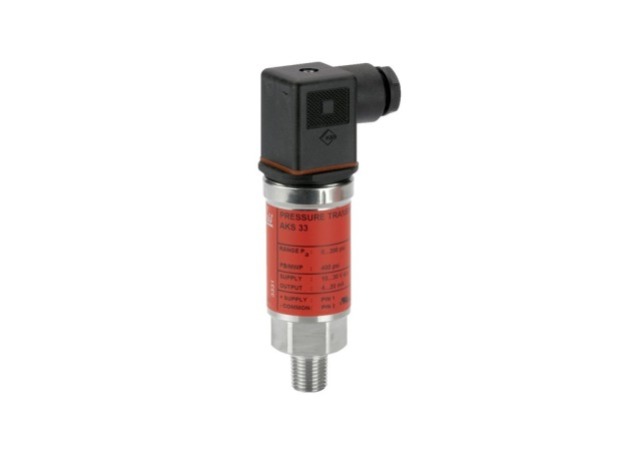

Pressure transmitter AKS 33
Danfoss
Product code:
060G2103
| Product Group : | Sensors and Probes |
|---|
General Information
| Intrinsically Safe : | No |
|---|---|
| Model Number : | 060G2103 |
| Product Group : | Sensors and Probes |
| Specification Key : | AKS 33-DG31-A1EC04-0 |
Additional Info
| Family : | AKS |
|---|
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | NPT |
| Pressure Connection Size : | 1/4 in |
| Pressure Connection Type : | NPT |
Electrical
| + Supply : | Pin 1 |
|---|---|
| - Common : | Pin 2 |
| Accuracy, Max [±FS%] : | 0.80 % |
| Accuracy, Typical [±FS%] : | 0.3 % |
| Electric Connection : | DIN-plug |
| Electric Connection Size : | Pg9 |
| High Clipping Level : | 22.40 |
| IP Class : | IP65 |
| Low Clipping Level : | 3.60 |
| Power Supply : | 10-30 V |
| Pulse-snubber : | No |
Inputs/Outputs
| Output Signal : | 4-20 mA |
|---|---|
| Output Signal Range : | 4-20 mA |
Logistical Information
| Commodity Code : | 90262020 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702422065982 |
| Gross Weight : | 0.18 kg |
Measurements
| Weight : | 0.15 kg |
|---|
Pressure
| Max Overload Pressure : | 55.0 Bar |
|---|---|
| Pressure Range : | -1.0-34.0 Bar |
| Pressure Reference : | Sealed gauge |
Sensors
| Max Response Time : | 4 ms |
|---|
Standards
| Approval : | ATEX, GOST POCC, cUR |
|---|
Temperature
| Ambient Temperature Range : | -40-85 °C |
|---|---|
| Compensated Temperature Range : | 0-80 °C |
| Medium Temperature Range : | -40-85 °C |
Sensor AKS 33 1/4 NPT, -1-34bar
