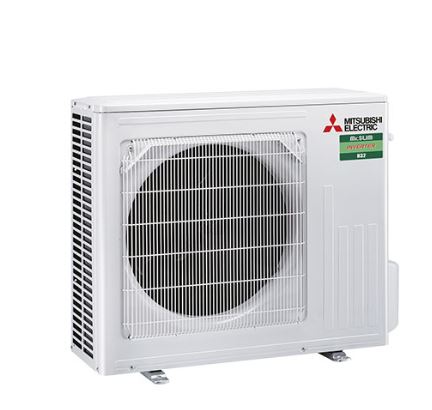

S series 5 KW outdoor R32 – SEZ/SLZ
Product code:
SUZ-M50VAD
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
General Information
| Product Group : | Outdoor Units for Ducted, Cassettes, Under Ceilings |
|---|
Additional Info
| Family : | SLZ and SEZ |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Single Split / Multi Split : | Single |
Air Volume/Air Flow
| Air Flow : | 763 L/s |
|---|
Connections
| Connection Size : | 6.35 mm |
|---|---|
| Connection Size 2 : | 12.7 mm |
Electrical
| Voltage : | 230/1/50 V/Ph/Hz |
|---|
Fan
| Number Of Fans : | 1 |
|---|
Outdoor Unit Attributes
| Depth (OU) : | 285 mm |
|---|---|
| Height (OU) : | 714 mm |
| Length (OU) : | 800 mm |
| Max Sound Power Level (OU) : | 48 dB(A) |
| Net Weight (OU) : | 41 kg |
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 30 m |
Refrigerant
| Refrigerant : | R32 |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15/+52 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15/+24 °C |
