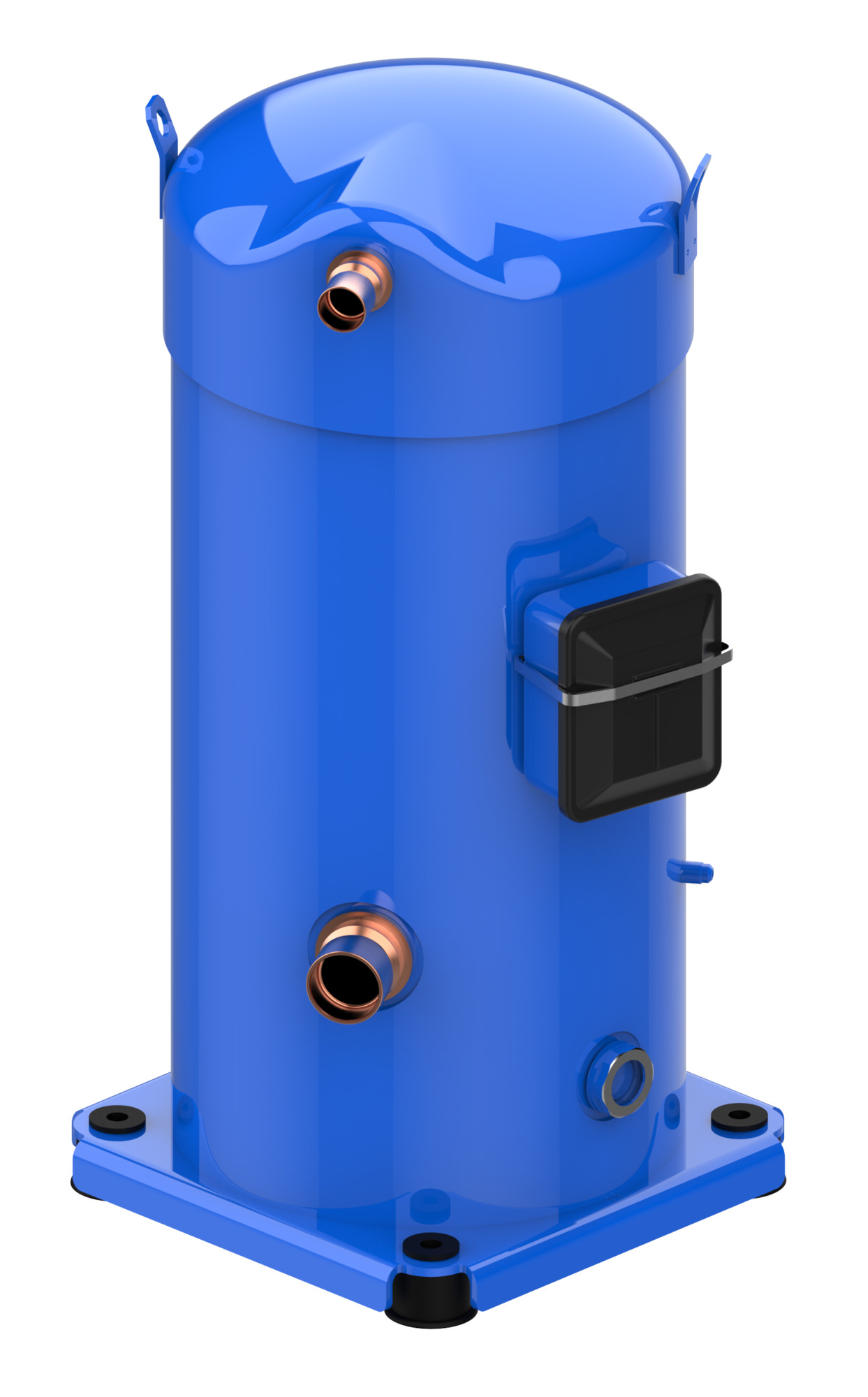

Scroll compressor, SZ148T4VC
Danfoss
Product code:
SZ148-4VAI
| Product Group : | Scrolls |
|---|
General Information
| Product Group : | Scrolls |
|---|---|
| Colour : | Blue |
| Model Number : | SZ148T4VC |
| Type : | SZ |
Capacity
| Capacity Control : | Fixed speed |
|---|
Compressor
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
|---|---|
| Swept Volume : | 199.00 cm³ |
| Technique : | Scroll |
Connections
| Connection Type : | Brazed |
|---|---|
| Discharge Connection Height : | 556 mm |
| Discharge Connection Pipe Size : | 7/8 in |
| Discharge Connection Size : | 7/8 in |
| Suction Connection Height : | 180 mm |
| Suction Connection Pipe Size : | 1 3/8 in |
| Suction Connection Size : | 1 3/8 in |
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| IP Class : | IP54 |
| LRA : | 145 A |
| MCC : | 32 A |
| Max Operating Current : | 29 A |
| RLA : | 22.9 A |
Logistical Information
| Commodity Code : | 84143081 |
|---|---|
| Country Of Origin : | FRA |
| EAN : | 5702428582810 |
| Gross Weight : | 105 kg |
Measurements
| Diameter : | 266 mm |
|---|---|
| Height : | 591 mm |
| Weight : | 89.66 kg |
Oil
| Oil Charge : | 3.60 L |
|---|---|
| Oil Type : | POE |
Refrigerant
| Max Refrigerant Charge : | 12.50 kg |
|---|---|
| Refrigerant : | R134a, R404A, R407C, R513A |
SZ148-4
