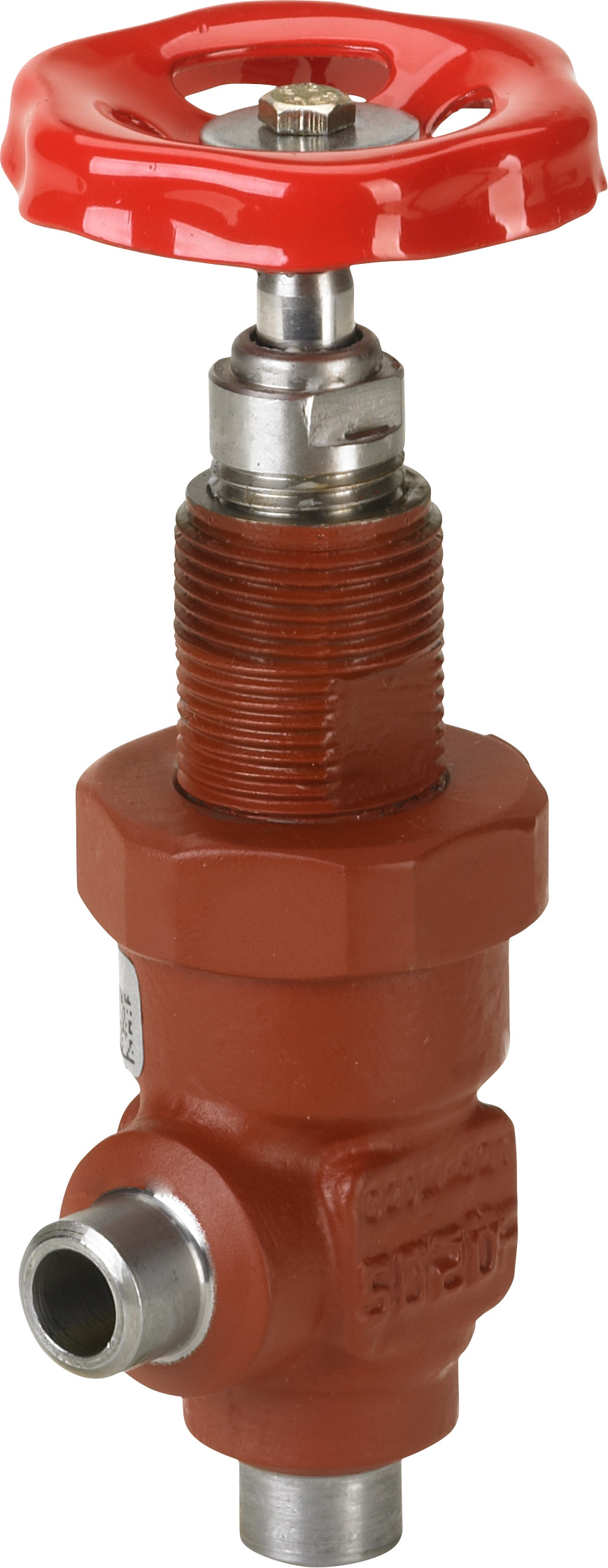

Shut-off valve, SVA-S 10, Steel, Max. Working Pressure [psig]: 754

Danfoss

Shut-off valve, SVA-S 10, Steel, Max. Working Pressure [psig]: 754
Product code: 148B5120
PLEASE LOGIN TO SEE PRICES
Product Group : Stop Valves
General Information
Product Group : Stop Valves
Approval : CE, EAC, LLC CDC TYSK, UKCA
CV Value : 5.2 gal/min
Equipment : Handwheel
Neck : Standard
Type : SVA-S 10
Compressor
PED Category : Art. 3, par. 3
Connections
Connection Standard : ASME B 36.10M SCHEDULE 80
Inlet Type : Butt weld
Outlet Type : Butt weld
Kv Values
Kv Value : 4.5 m³/h
Material
Body Material : Steel
Connection Material : Steel
Pressure
Max Operating Pressure : 52.0 Bar
Refrigerant
Refrigerant : R22, R23, R32, R113, R114, R125, R134a, R152a, R170, R227ea, R236fa, R245fa, R290, R401A, R402A, R402B, R404A, R407A, R407B, R407C, R407F, R407H, R408A, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R427A, R438A, R442A, R444B, R1150, R1234yf, R1234ze(E), R1270, R1336mzz(Z)
Valves
Direction : Angleway
Flow Direction : Bi-flow
Flow Direction Indicator : Embossed 1-way arrow
Fluid Group : 1
Valve Version : Standard version
File name Document Type Extension Size
Shut-off-valve-type-SVA-S-and-SVA-L1701368832.pdf Technical literature pdf 5.06 MB
