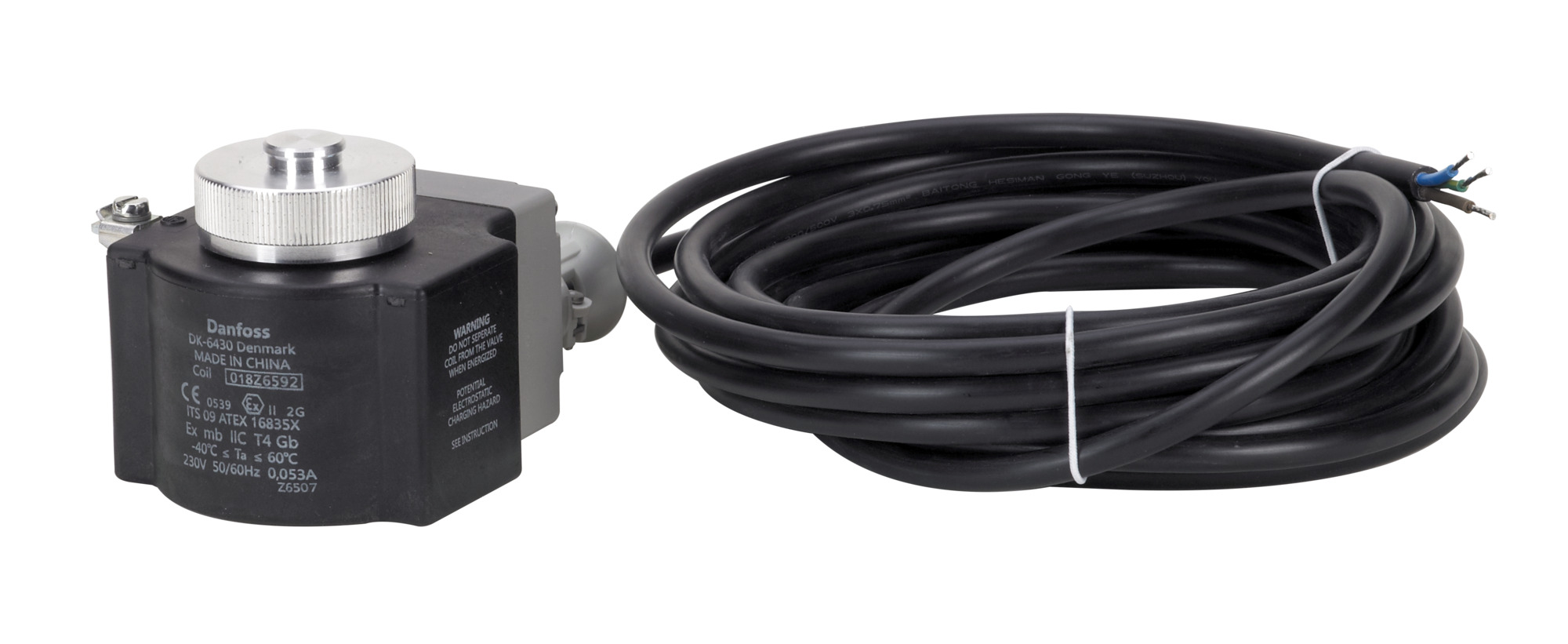

Solenoid coil, BO240C
Danfoss
Product code:
018Z6591
| Product Group : | AC and DC Coils |
|---|
General Information
| Colour : | Black |
|---|---|
| Parts Included : | IP67 seal kit |
| Product Group : | AC and DC Coils |
| Type : | BO240C |
Additional Info
| Additional Info : | ATEX approved coil |
|---|
Cable
| Cable Length : | 5.00 m, 196.00 in |
|---|
Connections
| Coil Connection Type : | CABLE |
|---|
Electrical
| Electric Connection : | Cable |
|---|---|
| Frequency : | 50/60 Hz |
| IP Class : | IP67 |
Humidity
| Relative Humidity Max : | 100 %RH |
|---|---|
| Relative Humidity Min : | 0 %RH |
Logistical Information
| Commodity Code : | 85059029 |
|---|---|
| Country Of Origin : | CHN |
| EAN : | 5702423039982 |
| Gross Weight : | 0.982 kg |
Measurements
| Weight : | 0.77 kg |
|---|
Standards
| Approval : | ATEX - Cat. 2 - Zone 1 |
|---|
Temperature
| Ambient Temperature Range : | -40-60 °C |
|---|
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| Coil Fastening : | Finger screw |
Coil BO240C 240V 50/60Hz 5m Cable ATEX
| File name | Document Type | Extension | Size |
|---|---|---|---|
| explosive-safety-certificate-intertek-its09atex16835x-rev-0-ast-id366032128011-0401.pdf | Conformity Declaration | 228.85 KB | |
| eu-declaration-danfoss-eu-032r9260-am-ast-id375153799014-0101.pdf | Conformity Declaration | 72.66 KB | |
| data-sheet-solenoid-coils-type-ba-bd-bb-be-bf-bg-bn-bo-bj-bx-by-bq-am-as-az-and-ap-ast-ai247086497610en-001001.pdf | Technical Literature | 15.53 MB | |
| solenoid-coil-for-control-in-potentially-explosive-areas-type-bo-ast-an196386442447en-000601.pdf | Installation Manual | 1.27 MB | |
| quality-assurance-certificate-demko-12-atex-q1209493-rev-11-ast-id366041268144-0701.pdf | Conformity Declaration | 163.89 KB |
