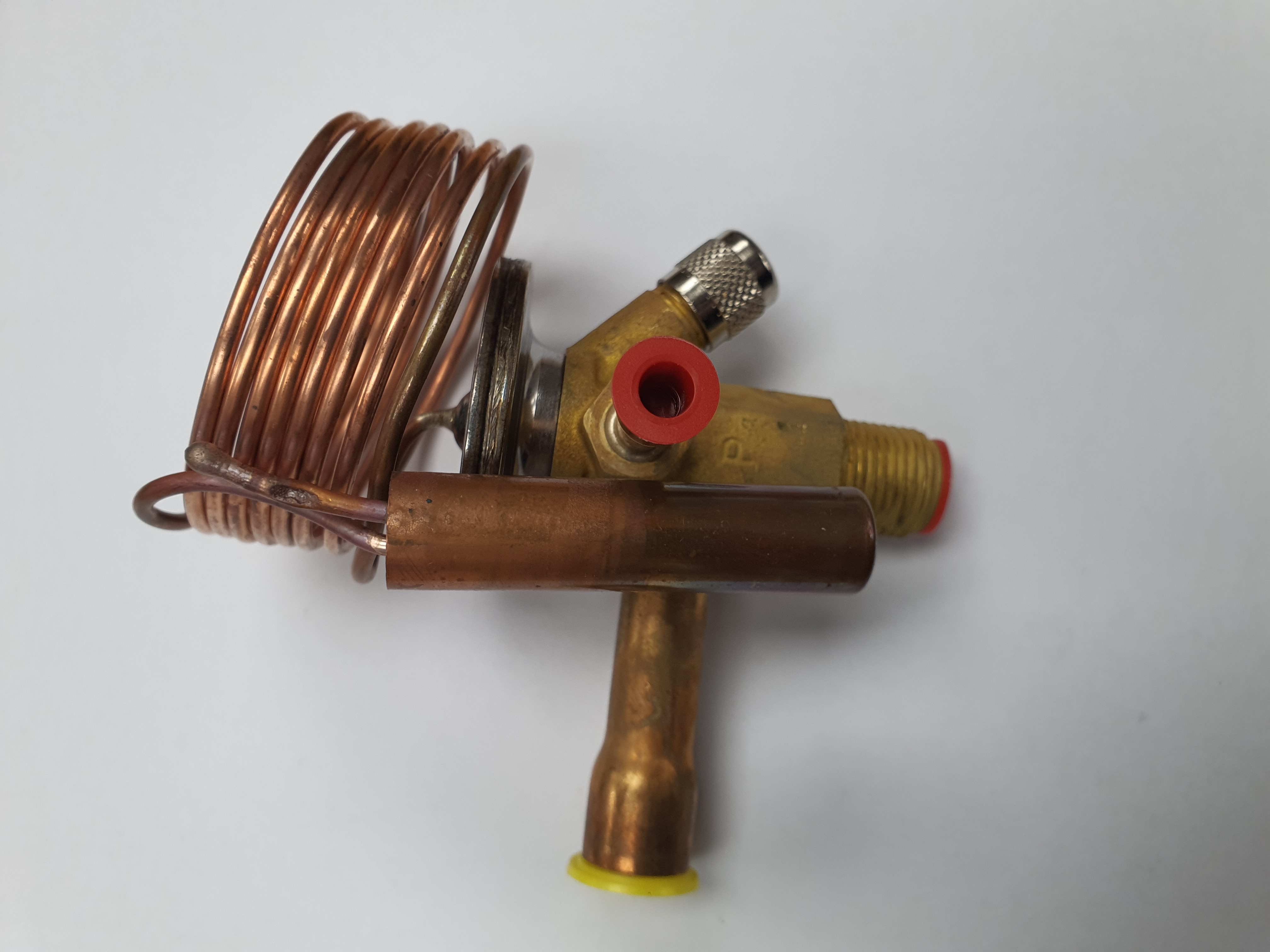

TX Valve Body - Sweat - Ext Eq - R404A

Product code: TISE-SW
PLEASE LOGIN TO SEE PRICES
Product Group : TX Valves Mechanical
General Information
Application : Expansion valve, Expansion valve body without nozzle, Control valve
Model Number : TI(S)E-SW
Product Group : TX Valves Mechanical
Connections
Connection Type : Solder, Flare
Equalization Connection Size : 1/4 in
Equalization Connection Type : ODF
Inlet Connection Size : 3/8 in
Outlet Connection Size : 1/2 in
Pressure
Max Operating Pressure : 45 Bar
Pressure Equalization : External
Refrigerant
Refrigerant : R404A, R448A, R449A, R507
Temperature
Temperature Range : -45-20 °C
With interchangeable nozzles. All valves are factory set to a static superheat of 3.3 K and normally no readjustment is needed.
Power range 0.25 - 19 kW.
Connection: 3/8" flare x 1/2" solder.
