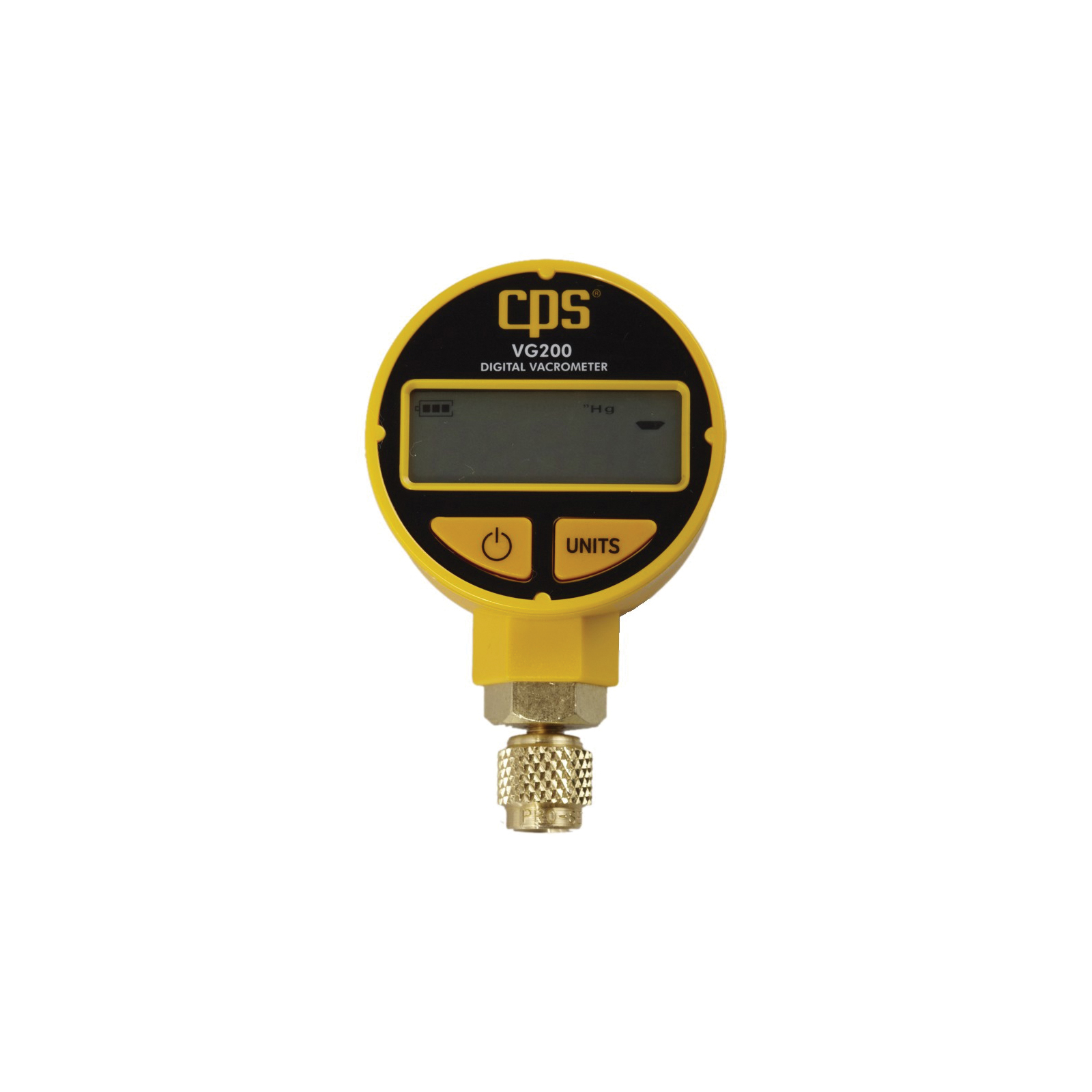

Vacuum Gauge CPS VG200
CPS
Product code:
VG200
| Product Group : | Vacuum Gauges |
|---|
General Information
| Fitting Size : | 1/4 in |
|---|---|
| Model Number : | VG200 |
| Product Group : | Vacuum Gauges |
Additional Info
| Additional Info : | max 400 PSI of positive pressure |
|---|
Connections
| Connection Type : | Female SAE |
|---|
Description
| Short Description : | CPS; VG200 Vacuum Gauge, Atmospheric to 1 um Measuring Range, +/-10 % Accuracy, Female SAE |
|---|
Display
| Display : | LCD |
|---|
Electrical
| Accuracy : | +/-10 % |
|---|---|
| Power Supply : | 9 V |
Measurements
| Diameter : | 2.7 in |
|---|
Pressure
| Pressure Rating : | 400 Bar |
|---|---|
| PressureRating : | 400 psi |
Calibrated to strict NIST standards for best-in-class accuracy and reliabilityAdvanced sensor design with self-heated thermistor bridge and automatic temperature compensationField cleanable sensor designed to withstand 400 Psi of positive pressureContinual digital readout of evacuation process on large, easy to read 5-digit LCD displayUser selectable units: Microns, Torr, in/hg or mBa
| File name | Document Type | Extension | Size |
|---|---|---|---|
| cps-vg100a-catalog-ast-cps-vg100a-catalog.pdf | Brochures | 240.31 KB | |
| vg200-product-certificate-ast-2013548.pdf | Conformity / Certification | 561.5 KB | |
| cps-vg200-specification-sheet-ast-unilog-701608.pdf | Document Type 1 | 1.23 MB | |
| vg2001-brochure-en-ast-2013545.pdf | Brochures | 193.43 KB | |
| vg200-manual-ast-2013547.pdf | User Manual | 240.31 KB |
