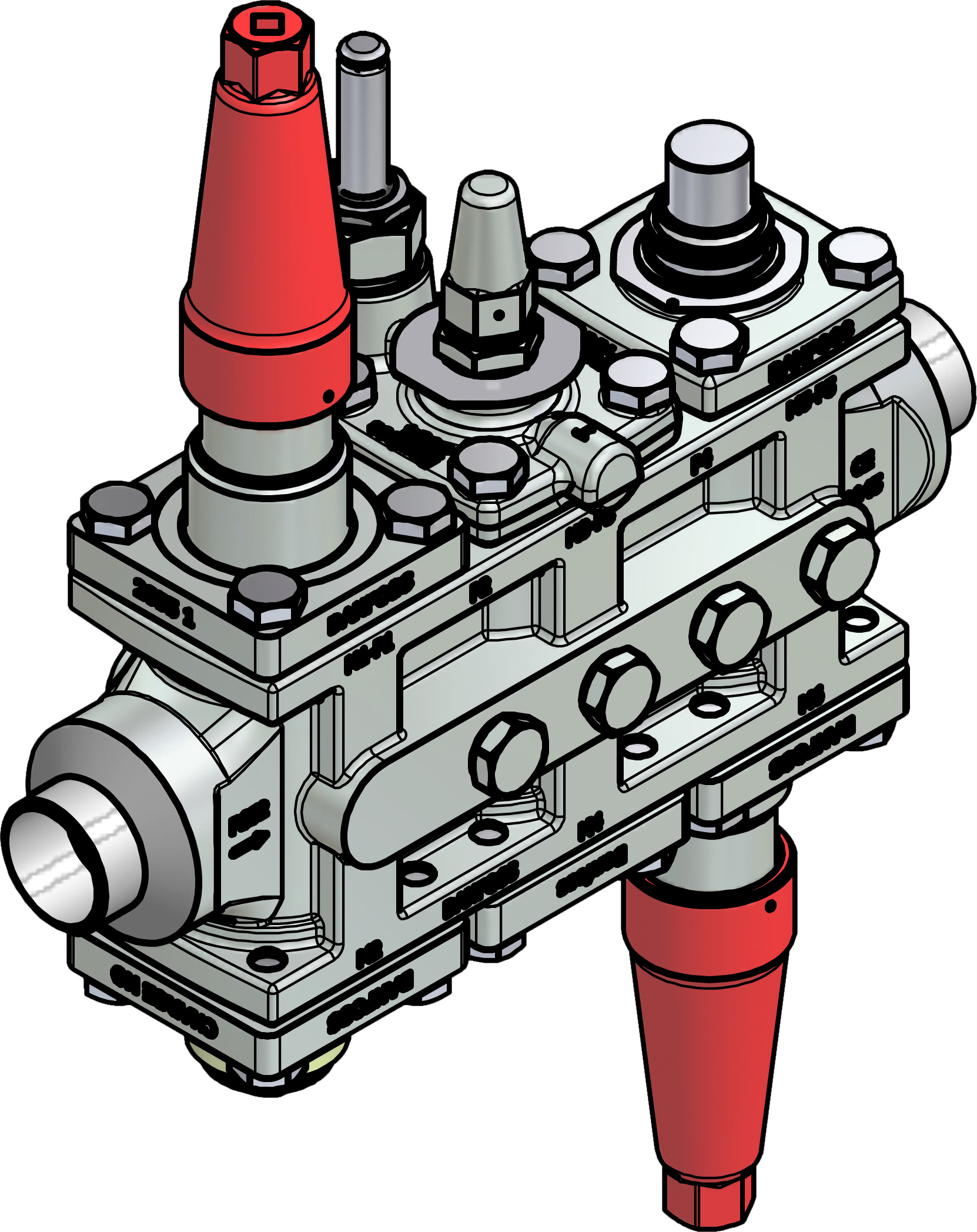

Valve station, ICF 25-6-5MA33, 40 mm, Connection standard: ASME B 16.11

Danfoss

Product code: 027L4172
PLEASE LOGIN TO SEE PRICES
Product Group : ICF Valve Stations
General Information
Product Group : ICF Valve Stations
Approval : CE, EAC, LLC CDC TYSK, T√úV, UKCA, UL
Equipment : Cap
Module 1 : Stop valve
Module 1 Type : ICFS 25
Module 2 : Filter
Module 2 Type : ICFF 25E
Module 3 : Solenoid valve
Module 3 Type : ICFE 25
Module 4 : Blank top cover
Module 4 Type : ICFB 25
Module 5 : Motor valve
Module 5 Type : ICM 25-A33
Module 6 : Stop valve
Module 6 Type : ICFS 25
Surface Coating : ZnCr04
Type : ICF 25-6-5MA33
Compressor
PED Category : II
Connections
Connection Standard : ASME B 16.11
Connection Type : Socket weld
Side Port Placement : P2-P4-P5-P7-P9-P10
Material
Body Material : Steel
Pressure
Max Operating Pressure : 52.0 Bar
Refrigerant
Refrigerant : R5, R22, R125, R134a, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R463A, R502, R507A, R515B, R717, R744, R1234yf, R1234ze(E)
Valves
Direction : Straightway
Fluid Group : 1
