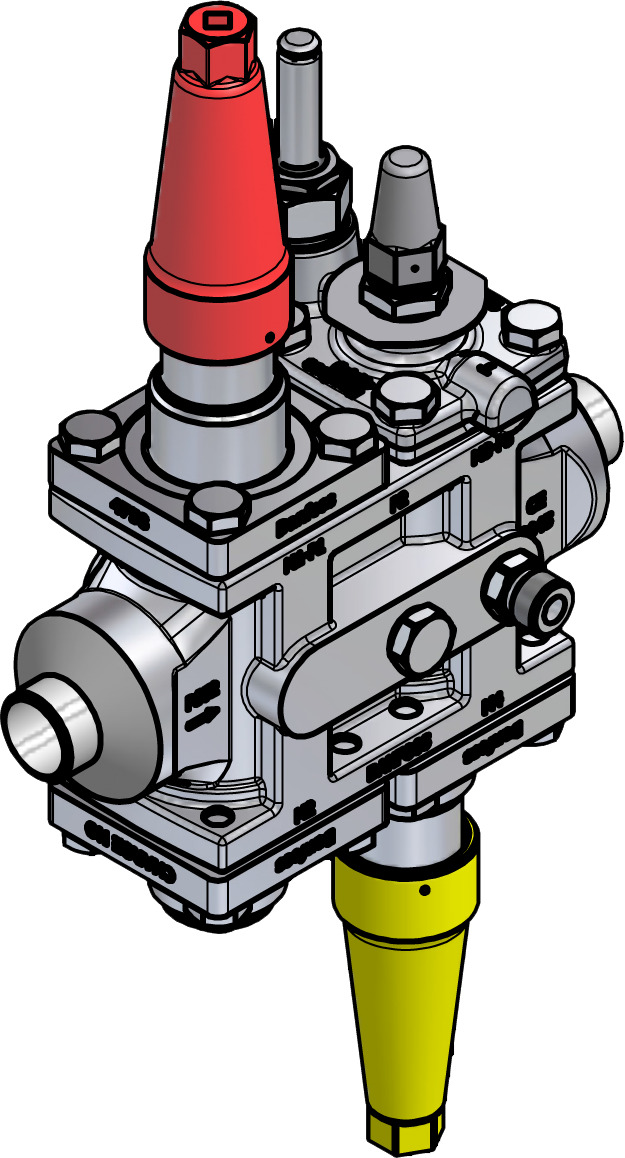

Valve station, ICF SS 25-4-10RA, 25 mm, Connection standard: EN 10220

Danfoss

Valve station, ICF SS 25-4-10RA, 25 mm, Connection standard: EN 10220
Product code: 027L4731
PLEASE LOGIN TO SEE PRICES
Product Group : ICF Valve Stations
General Information
Product Group : ICF Valve Stations
Approval : CE, EAC, LLC CDC EURO-TYSK, UKCA
Equipment : Cap
Module 1 : Stop valve
Module 1 Type : ICFS SS 25
Module 2 : Filter
Module 2 Type : ICFF SS 25
Module 3 : Solenoid valve
Module 3 Type : ICFE SS 25
Module 4 : Manual regulating valve
Module 4 Type : ICFR SS 25-A
Surface Coating : uncoated
Type : ICF SS 25-4-10RA
Compressor
PED Category : II
Connections
Connection Standard : EN 10220
Connection Type : Butt weld
Side Port Connection Size : 3/8 in
Side Port Connection Type : G in
Side Port Placement : P2-P3-P5-P6
Material
Body Material : Stainless Steel
Connection Material : Stainless Steel
Pressure
Max Operating Pressure : 52.0 Bar
Refrigerant
Refrigerant : R22, R32, R125, R134a, R227ea, R236fa, R245fa, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R1234yf, R1234ze(E)
Valves
Direction : Straightway
Flow Direction Indicator : Embossed 1-way arrow
Fluid Group : 1
File name Document Type Extension Size
Valve-station-type-ICF-SS-20-and-ICF-SS-25.pdf Technical literature pdf 8.75 MB
