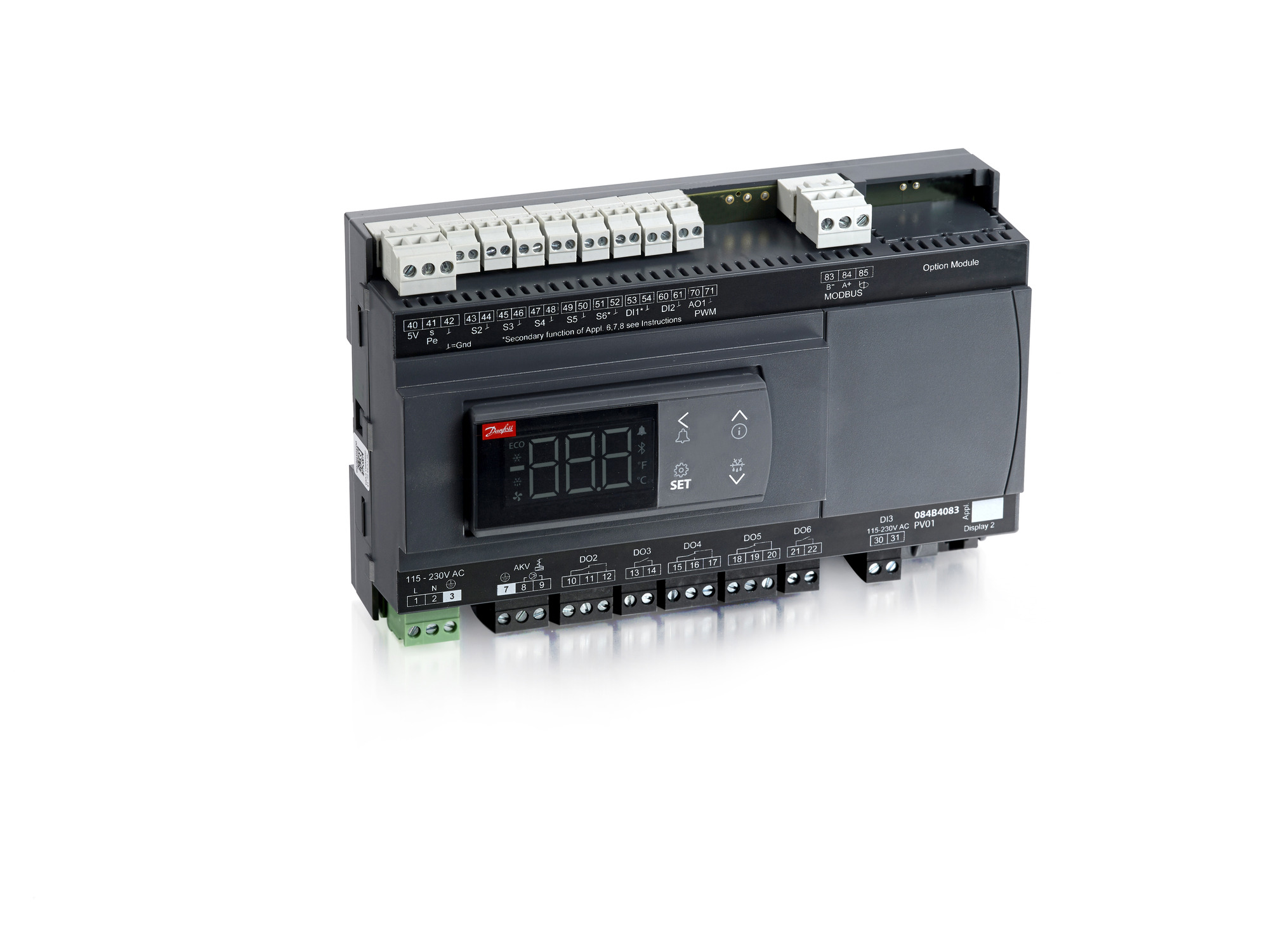

Case/room controller (EEV), AK-CC55 Single Coil UI
Danfoss
Product code:
084B4083
| Product Group : | System Controllers |
|---|
General Information
| Controller Type : | Case Contr. Single Coil w. Dis |
|---|---|
| Function : | AKV, Pe, 5 Relays, Display |
| Product Group : | System Controllers |
Communication
| Communication Built-in : | MODBUS |
|---|---|
| Communication Card Option : | LON RS485 |
Display
| Display On Front : | Yes |
|---|
Electrical
| Frequency : | 50/60 Hz |
|---|---|
| Voltage : | 115/230 V |
Energy Efficiency/Performance
| Energy Consumption : | 5 VA |
|---|
Features
| Product Features : | CO2 compliant, Pe Signal, S2 Injection control |
|---|
Inputs/Outputs
| Digital Inputs (DI) : | 3 pc |
|---|---|
| Digital Outputs (DO) : | 6 pc |
| Max Number of Evaporators : | 1 pcs |
Logistical Information
| Commodity Code : | 85371091 |
|---|---|
| Country Of Origin : | DNK |
| EAN : | 5702428523639 |
Measurements
| Net Weight : | 0.35 kg |
|---|---|
| Weight : | 0.35 kg |
Standards
| Approval : | C-TICK, CE |
|---|
Valves
| Valve Output Type : | AKV |
|---|
AK-CC55 SINGLE COIL UI C CONTR. S/M-PACK
Accessory
| File name | Document Type | Extension | Size |
|---|---|---|---|
| emc-certificate-acma-cf13198-au-rev-00-ast-id366039919047-0101.pdf | Conformity Declaration | 139.98 KB | |
| case-room-controller-eev-type-ak-cc55-ast-ai379338681319en-000201.pdf | Technical Literature | 7.86 MB | |
| brochure-overview-brochure-evaporator-controllers-en-ast-ad168486422742en-000204.pdf | Brochures | 1.94 MB | |
| manufacturer-s-declaration-danfoss-md-080r1237-01-ast-id399450575313-0201.pdf | Conformity Declaration | 502.79 KB | |
| eu-uk-declaration-danfoss-eu-uk-084r0835-ab-ast-id365935428466-0301.pdf | Conformity Declaration | 771.74 KB | |
| brochure-adapkool-evaporator-controllers-en-ast-ad379371963470en-010101.pdf | Brochures | 3 MB | |
| cb-test-certificate-us-35091-m1-ul-ast-id402137083823-0101.pdf | Conformity Declaration | 249.89 KB | |
| caseroom-controller-eev-type-akcc55-single-coil-ast-an294432763974en-000501.pdf | Installation Manual | 985.1 KB |
